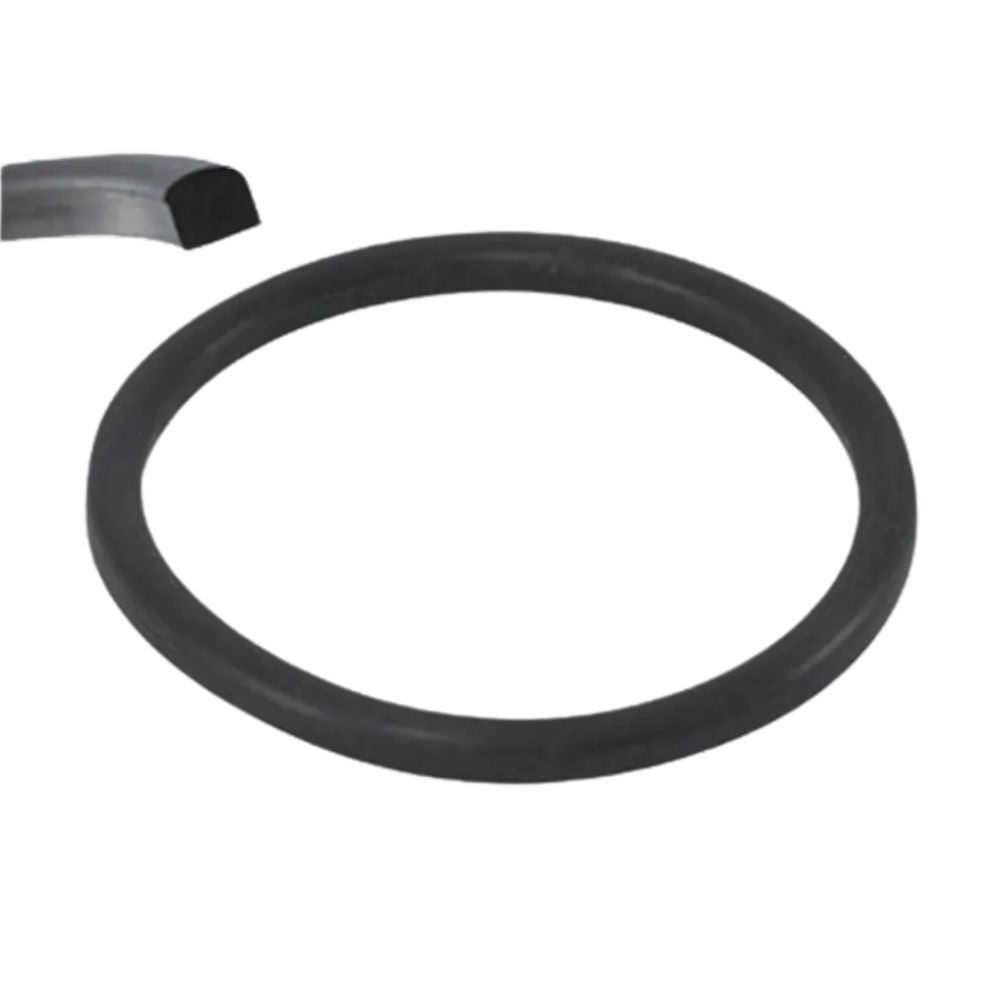

DS union gasket, NBR

Application:

  • Gasket for dairy pipe unions, type DS
  • Good resistance to mineral oils, grease, and water
  • Not suitable for CIP

Construction:

Made of nitrile rubber, NBR.

Standards:

Certified by FDA/USP.

Temperature:

The temperature ranges from -20°C to +120°C.

Download data sheet
Item number Nominal dim.
mm.
ID Ø dia.
mm.
OD Ø dia.
mm.
Height H
mm.
Elastomer
type
Base unit Quantity
0301009150 25,0 25,0 31,8 4,5 NBR PCS
0301009190 38,0 38,0 46,8 4,5 NBR PCS
0301009230 51,0 51,0 58,7 4,5 NBR PCS
0301009250 63,5 63,5 72,2 4,5 NBR PCS
0301009270 76,1 76,1 87,6 4,5 NBR PCS
0301009290 101,6 101,6 112,1 4,5 NBR PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
