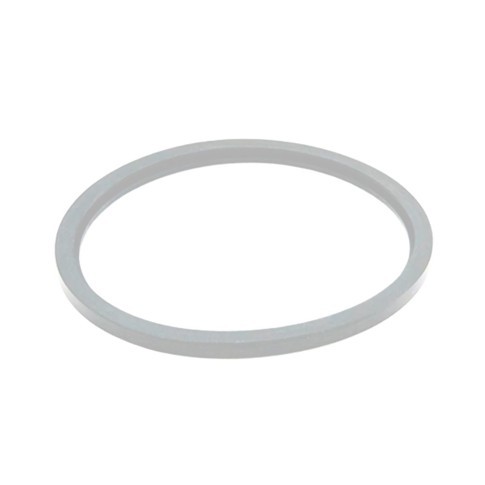

SMS union gasket, EPDM, detectable

Application:

  • Gasket for dairy pipe unions, type SMS
  • Detectable in metal detector
  • Good resistance to many organic liquids, including acids, lye and especially CIP
  • Not suitable for mineral oils and grease

Construction:

Made of ethylene propylene diene monomer rubber, EPDM.

Standards:

Certified by FDA.

Temperature:

The temperature ranges from -40°C to +150°C.

Item number Nominal dim.
mm.
ID Ø dia.
mm.
OD Ø dia.
mm.
Height H
mm.
Elastomer
type
Base unit Quantity
0302069150 25,0 25,0 32,0 5,5 EPDM PCS
0302069190 38,0 38,0 48,0 5,5 EPDM PCS
0302069230 51,0 51,0 61,0 5,5 EPDM PCS
0302069250 63,5 63,5 73,5 5,5 EPDM PCS
0302069270 76,1 76,1 86,0 5,5 EPDM PCS
0302069290 101,6 101,6 114,0 5,5 EPDM PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
