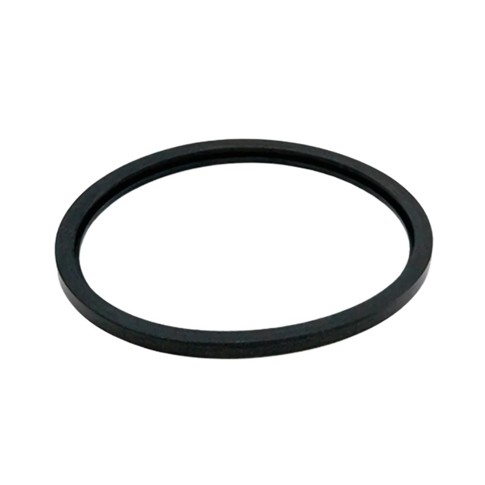

SMS union gasket, EPDM, with lip

Application:

Gasket for dairy pipe unions, type SMS
Good resistance to many organic liquids, including acids, lye and especially CIP
Not suitable for mineral oils and grease

Construction:

Made of ethylene propylene diene monomer rubber, EPDM.

Standards:

Certified by FDA/USP.

Temperature:

The temperature ranges from -40°C to +150°C.

Download data sheet

Item number	Nominal dim. mm.	ID Ø dia. mm.	OD Ø dia. mm.	Height H mm.	Elastomer type	Base unit
0302049150	25,0	22,5	32,0	5,5	EPDM	PCS
0302049190	38,0	35,5	47,5	6,0	EPDM	PCS
0302049230	51,0	48,5	61,0	5,5	EPDM	PCS
0302049250	63,5	60,5	73,5	5,5	EPDM	PCS
0302049270	76,1	72,9	86,0	5,5	EPDM	PCS
0302049290	101,6	98,0	114,0	6,0	EPDM	PCS
