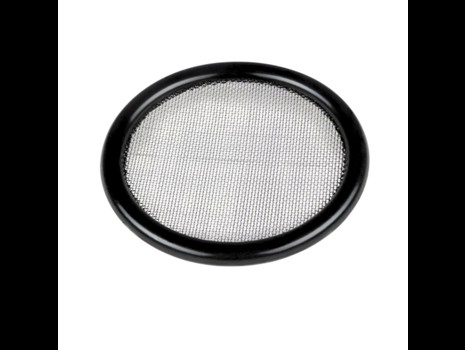

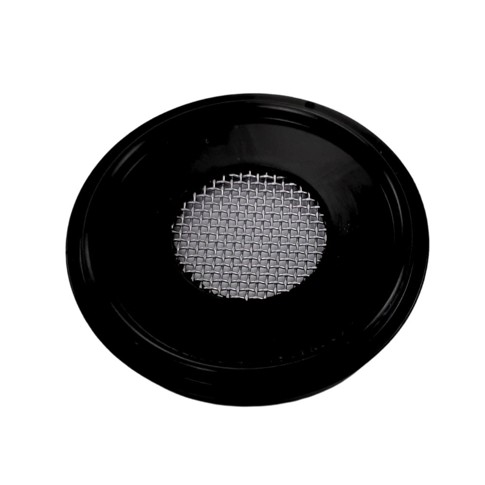

Clamp union gasket, ISO, with screen

Application:

Typical use of the filter is protection of process plants such as pumps or heat exchangers
As filter in connection with filling nozzles to prevent loose particles from entering a process system
As security for WFI-systems (Water For Injection)

Construction:

Designed as standard union seals for Clamp with integrated stainless woven filter
The fineness of the filter is expressed as Mesh or threads per inch - a fine filter has many threads per inch

Material & quality:

Elastomer:

EPDM; Platinum silicone; FKM; PTFE; Virgin PTFE & Steam-Flon®

Stainless steel:

AISI 316L (1.4404)

Standards:

USP Class VI-121°C (also EP 3.1.9);
EF 10/2011 (EC1935/2004)
FDA 177.2600 & FDA 177.1550 (PTFE)

Certified by:

TSE/BSE (ADIF) free (EME/410/01)

Download data sheet

Item number	Nominal dim. mm.	ID Ø dia. mm.	OD Ø dia. mm.	Height H mm.	Opening mm.	Particle size micron	Open area %	Mesh thread/inch	Union type	Material type	Base unit
0304919150010	1"	22,8	50,5	2,0	1,91	1905 µ	56,3	10x10	ISO Clamp	EPDM	PCS
0304919150020	1"	22,8	50,5	2,0	0,87	870 µ	46,2	20 x 20	ISO Clamp	EPDM	PCS
0304919150100	1"	22,8	50,5	2,0	0,14	140 µ	30,3	100 x 100	ISO Clamp	EPDM	PCS
0304919150200	1"	22,8	50,5	2,0	0,08	80 µ	33,6	200 x 200	ISO Clamp	EPDM	PCS
0304919190002	1½"	35,3	50,5	2,0	11,0	11000 µ	66,0	2 X 2	ISO Clamp	EPDM	PCS
0304919190004	1½"	35,3	50,5	2,0	5,16	5156 µ	65,9	4 x 4	ISO Clamp	EPDM	PCS
0304919190006	1½"	35,4	50,5	2,0	3,30	3340 µ	62,4	6 x 6	ISO Clamp	EPDM	PCS
0304919190008	1½"	35,4	50,5	2,0	2,46	2464 µ	60,2	8 x 8	ISO Clamp	EPDM	PCS
0304919190010	1½"	35,4	50,5	2,0	1,91	1905 µ	56,3	10 x 10	ISO Clamp	EPDM	PCS
0304919190012	1½"	35,3	50,5	2,0	1,52	1617 µ	52,4	12 x 12	ISO Clamp	EPDM	PCS
0304919190018	1½"	35,4	50,5	2,0	0,99	1061 µ	48,2	18 x 18	ISO Clamp	EPDM	PCS
0304919190020	1½"	35,4	50,5	2,0	0,87	870 µ	46,2	20 x 20	ISO Clamp	EPDM	PCS
0304919190040	1½"	35,4	50,5	2,0	0,41	415 µ	43,0	40 x 40	ISO Clamp	EPDM	PCS
0304919190060	1½"	35,4	50,5	2,0	0,23	233 µ	30,3	60 x 60	ISO Clamp	EPDM	PCS
0304919190080	1½"	35,4	50,5	2,0	0,18	180 µ	31,4	80 x 80	ISO Clamp	EPDM	PCS
0304919190100	1½"	35,4	50,5	2,0	0,14	140 µ	30,3	100 x 100	ISO Clamp	EPDM	PCS
0304919190200	1½"	35,3	50,5	2,0	0,08	80 µ	33,6	200 x 200	ISO Clamp	EPDM	PCS
0304919230004	2"	47,8	64,0	2,0	5,16	5156 µ	65,9	4 x 4	ISO Clamp	EPDM	PCS
0304919230010	2"	47,7	64,0	2,0	1,91	1905 µ	56,3	10 x 10	ISO Clamp	EPDM	PCS
0304919230020	2"	47,7	64,0	2,0	0,87	870 µ	46,2	20 x 20	ISO Clamp	EPDM	PCS
0304919230150	2"	47,7	64,0	2,0	0,10	103 µ	37,2	150 x 150	ISO Clamp	EPDM	PCS
0304919230200	2"	47,7	64,0	2,0	0,08	80 µ	33,6	200 x 200	ISO Clamp	EPDM	PCS
0304919250004	2½"	61,0	77,5	2,0	5,16	5156µ	65,9	4 x 4	ISO Clamp	EPDM	PCS
0304919250010	2½"	61,0	77,5	2,0	1,91	1905 µ	56,3	10 x 10	ISO Clamp	EPDM	PCS
0304919250020	2½"	61,0	77,5	2,0	0,87	870 µ	46,2	20 x 20	ISO Clamp	EPDM	PCS
0304919270200	3"	73,5	91,0	2,0	0,08	80 µ	33,6	200 x 200	ISO Clamp	EPDM	PCS
0304919290100	4"	98,2	119,0	2,0	0,14	140 µ	30,3	100 x 100	ISO Clamp	EPDM	PCS
0304929150020	1"	22,8	50,5	2,0	0,87	870 µ	46,2	20 x 20	ISO Clamp	Viton	PCS
0304929150200	1"	22,8	50,5	2,0	0,08	80 µ	33,6	200 x 200	ISO Clamp	Viton	PCS
0304929190004	1½"	35,3	50,5	2,0	5,16	5156 µ	65,9	4 x 4	ISO Clamp	Viton	PCS
0304929190010	1½"	35,3	50,5	2,0	1,91	1905 µ	56,3	10 x 10	ISO Clamp	Viton	PCS
0304929190020	1½"	35,4	50,5	2,0	0,87	870 µ	46,2	20 x 20	ISO Clamp	Viton	PCS
0304929190040	1½"	35,3	50,5	2,0	0,41	415 µ	43,0	40 x 40	ISO Clamp	Viton	PCS
0304929190150	1½"	35,3	50,5	2,0	0,10	103 µ	37,2	150 x 150	ISO Clamp	Viton	PCS
0304929190200	1½"	35,3	50,5	2,0	0,08	80 µ	33,6	200 x 200	ISO Clamp	Viton	PCS
0304929230004	2"	47,8	64,0	2,0	5,16	5156 µ	65,9	4 x 4	ISO Clamp	Viton	PCS
0304929230006	2"	47,8	64,0	2,0	3,34	3340 µ	62,4	6 x 6	ISO Clamp	Viton	PCS
0304929230010	2"	47,8	64,0	2,0	1,91	1905 µ	56,3	10 x 10	ISO Clamp	Viton	PCS
0304929230020	2"	47,7	64,0	2,0	0,87	870 µ	46,2	20 x 20	ISO Clamp	Viton	PCS
0304929230040	2"	47,8	64,0	2,0	0,41	415 µ	43,0	40 x 40	ISO Clamp	Viton	PCS
0304929230150	2"	47,8	64,0	2,0	0,10	103 µ	37,2	150 x 150	ISO Clamp	VITON	PCS
0304929250018	2½"	60,5	77,5	2,0	0,99	1061 µ	48,2	18 x 18	ISO Clamp	VITON	PCS
0304929250020	2½"	60,5	77,5	2,0	0,87	870 µ	46,2	20 x 20	ISO Clamp	Viton	PCS
0304929250030	2½"	60,5	77,5	2,0	0,10	527 µ	37,2	30 x 30	ISO Clamp	VITON	PCS
0304929270020	3"	73,5	91,0	2,1	0,87	870 µ	46,2	20 x 20	ISO Clamp	Viton	PCS
0304929290006	4"	98,2	119,0	2,0	3,34	870 µ	62,4	6 x 6	ISO Clamp	VITON	PCS
0304929290010	4"	98,2	119,0	2,0	1,91	1905 µ	56,3	10 x 10	ISO Clamp	VITON	PCS
0304929290020	4"	98,2	119,0	2,0	0,87	870 µ	46,2	20 x 20	ISO Clamp	Viton	PCS
0304939190010	1½"	35,4	50,5	2,0	1,91	1905 µ	56,3	10 x 10	ISO Clamp	PTFE	PCS
0304939190020	1½"	35,3	50,5	2,0	0,87	870 µ	46,2	20 x 20	ISO Clamp	PTFE	PCS
0304939230020	2"	47,6	64,0	2,0	0,87	870 µ	46,2	20 x 20	ISO Clamp	PTFE	PCS
