DIN union gasket with screen

Application:

  • Typical use of the filter is protection of process plants such as pumps or heat exchangers
  • As filter in connection with filling nozzles to prevent loose particles from entering a process system
  • As security for WFI-systems (Water For Injection)

Construction:

  • Designed as standard union seals for DIN with integrated stainless woven filter

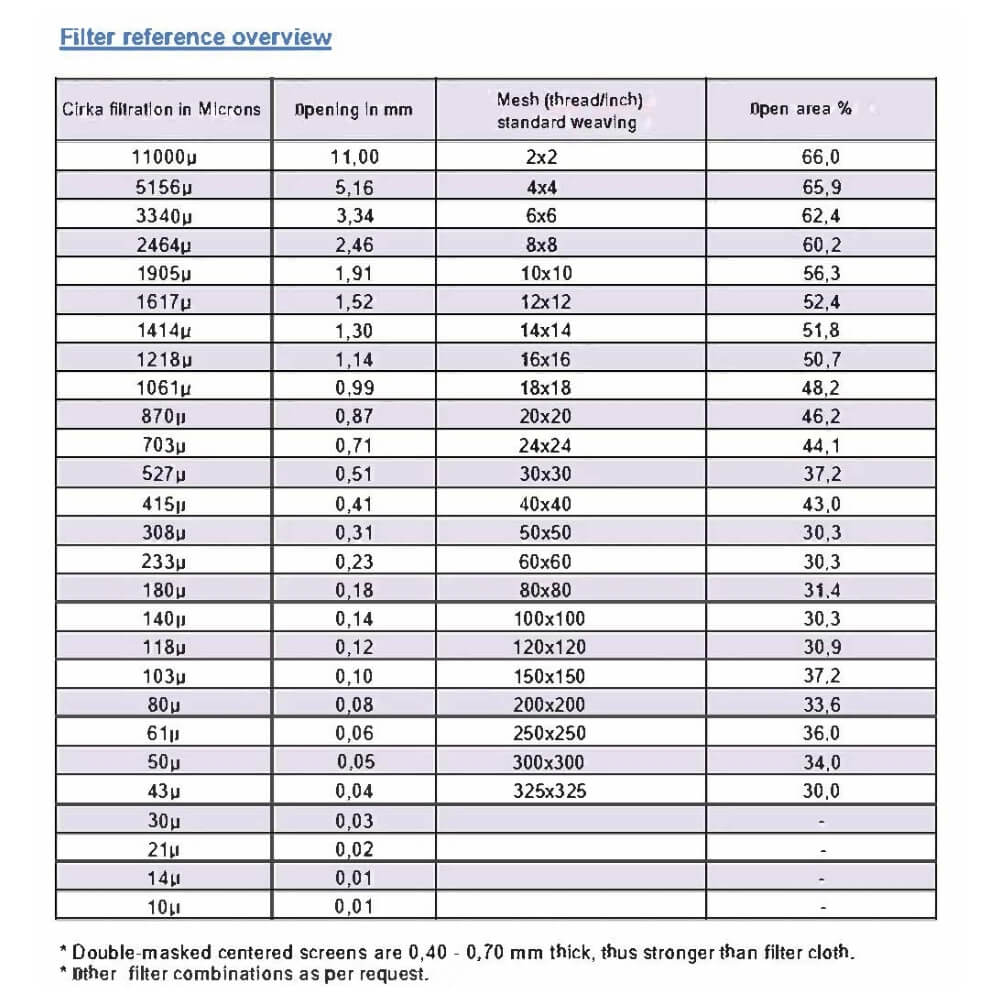

  • The fineness of the filter is expressed as Mesh or threads per inch - a fine filter has many threads per inch

Material & quality:

Elastomer:

  • EPDM; Platinum silicone; FKM; PTFE; Virgin PTFE & Steam-Flon®

Stainless steel:

  • AISI 316L (1.4404)

Standards:

  • USP Class VI-121°C (also EP 3.1.9);
  • EF 10/2011 (EC1935/2004)
  • FDA 177.2600 & FDA 177.1550 (PTFE)

Certified by:

  • TSE/BSE (ADIF) free (EME/410/01)
Download data sheet
Item number Nominal dim.
mm.
ID Ø dia.
mm.
OD Ø dia.
mm.
Height H
mm.
Opening
mm.
Particle size
micron
Open area
%
Mesh
thread/inch
Union type Material type Base unit Quantity
0304710150004 15 16,5 26,0 5,0 3,34 5156 µ 62,4 6x6 DIN EPDM PCS
0304710150010 15 16,5 26,0 5,0 1,91 19057 µ 56,3 10x10 DIN EPDM PCS
0304710150020 15 16,5 26,0 5,0 0,87 870 µ 46,2 20x20 DIN EPDM PCS
0304710200004 20 20,5 33,0 5,0 5,16 5156 µ 65,9 4x4 DIN EPDM PCS
0304710200010 20 20,5 33,0 5,0 1,91 1905 µ 56,3 10x10 DIN EPDM PCS
0304710200020 20 20,5 33,0 5,0 0,87 870 µ 46,2 20x20 DIN EPDM PCS
0304710250004 25 26,5 40,0 6,0 5,16 5156 µ 65,9 4x4 DIN EPDM PCS
0304710250010 25 26,5 40,0 6,0 1,91 1905 µ 56,3 10x10 DIN EPDM PCS
0304710250020 25 26,5 40,0 6,0 0,87 870 µ 46,2 20x20 DIN EPDM PCS
0304710400004 40 38,5 52,0 6,0 5,16 5156 µ 65,9 4x4 DIN EPDM PCS
0304710400010 40 38,5 52,0 6,0 1,91 1905 µ 56,3 10x10 DIN EPDM PCS
0304710400020 40 38,5 52,0 6,0 0,87 870 µ 46,2 20x20 DIN EPDM PCS
0304710500004 50 50,5 64,0 6,0 5,16 5156 µ 65,9 4x4 DIN EPDM PCS
0304710500010 50 50,5 64,0 6,0 1,91 1905 µ 56,3 10x10 DIN EPDM PCS
0304710500020 50 50,5 64,0 6,0 0,87 870 µ 46,2 20x20 DIN EPDM PCS
0304710650004 65 66,5 81,0 6,0 5,16 5156 µ 65,9 4x4 DIN EPDM PCS
0304710650010 65 66,5 81,0 6,0 1,91 1905 µ 56,3 10x10 DIN EPDM PCS
0304710650020 65 66,5 81,0 6,0 0,87 870 µ 46,2 20x20 DIN EPDM PCS
0304710800004 80 81,5 95,0 6,0 5,16 527 µ 65,9 4x4 DIN EPDM PCS
0304710800010 80 81,5 95,0 6,0 1,91 1905 µ 56,3 10x10x DIN EPDM PCS
0304710800020 80 81,5 95,0 6,0 0,87 870µ 46,2 20x20 DIN EPDM PCS
0304711000004 100 100,5 114,0 6,0 5,16 5156 µ 65,9 4x4 DIN EPDM PCS
0304711000010 100 100,5 114,0 6,0 1,91 1905 µ 56,3 10x10 DIN EPDM PCS
0304711000020 100 100,5 114,0 6,0 087 870 µ 46,2 20x20 DIN EPDM PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
