Press Coupling f. corrug. PTFE hose w. braid & silicone, BSP nut with 60° cone

Application:

Suitable for chemistry tasks as well as media with high temperature requirements. Can also be used on filling equipment.

Construction:

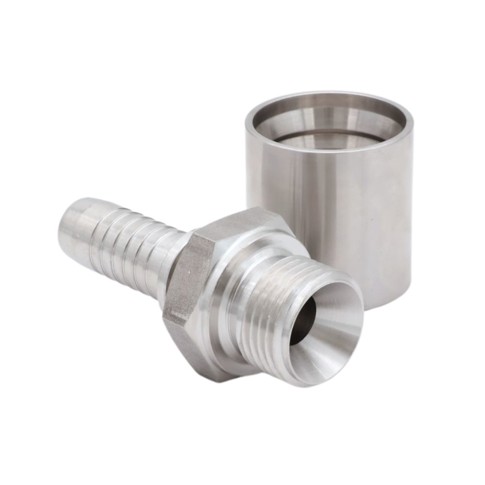

The coupling consists of a connection piece and a sleeve that are pressed together under great pressure and thereby creates a strong and very smooth transition between the hose and coupling. Special design is possible.

Quality:

Both connection piece and sleeve are made of stainless steel AISI 316.

Download data sheet
Item number Nominal dim.
mm.
Connection
RG
Ø ID hose
mm.
Ø OD hose
mm.
Length L
mm.
Base unit Quantity
0468040617TS 6,0 1/4" 6,0 17,0 41,0 PCS
0468041221TS 13,0 1/2" 13,0 25,0 45,0 PCS
0468042028TS 20,0 3/4" 20,0 28,0 63,5 PCS
0468042540TS 25,0 1" 25,0 39,0 74,5 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
