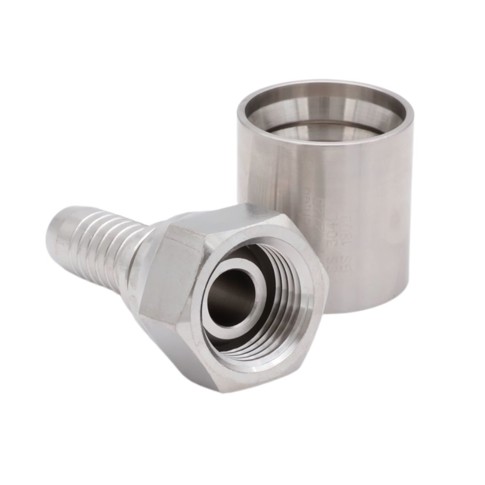

Press coupling f. corrugated PTFE hose w. braid, BSP nut with 60° cone

Press coupling f. corrugated PTFE hose w. braid, BSP nut with 60° cone

Other customers also saw

Press coupling f. corrugated PTFE hose w. braid, BSP nut with 60° cone

Application:

Suitable for chemistry tasks as well as media with high temperature requirements. Can also be used on filling equipment.

Construction:

The coupling consists of a connection piece and a sleeve that are pressed together under great pressure and thereby creates a strong and very smooth transition between the hose and coupling. Special design is possible.

Quality:

Both connection piece and sleeve are made of stainless steel AISI 316.

Download data sheet

Item number	Nominal dim. mm.	Connection RG	Ø ID hose mm.	Ø OD hose mm.	Length L mm.	Base unit
0467040612	6,0	1/4"	6,0	12,0	44,0	PCS
0467040612A	6,0	3/8"	6,0	12,0	44,0	PCS
0467041018	10,0	3/8"	10,0	18,0	47,5	PCS
0467041018A	10,0	1/2"	10,0	18,0	47,5	PCS
0467041018B	10,0	1/4"	10,0	18,0	46,0	PCS
0467041221	12,0	1/2"	12,0	21,0	51,0	PCS
0467041221A	12,0	3/4"	12,0	21,0	51,0	PCS
0467041625	16,0	1/2"	16,0	25,0	54,8	PCS
0467042028	20,0	3/4"	20,0	28,0	63,5	PCS
0467042535	25,0	1"	25,0	35,0	74,5	PCS
0467042535A	25,0	1 1/4"	25,0	35,0	75,5	PCS
0467043242	32,0	1 1/4"	32,0	42,0	84,5	PCS
0467043242A	32,0	1½"	32,0	42,0	84,5	PCS
0467043849	38,0	1 1/2"	38,0	49,0	92,0	PCS
0467045163	51,0	2"	51,0	63,0	103,0	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
