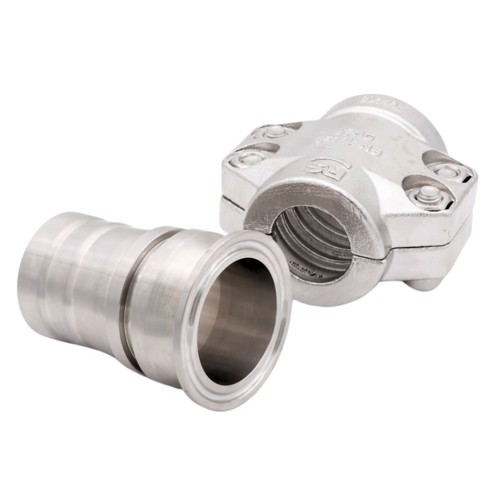

DIN Clamp liner

Application:

Clamp fitting with DIN Clamp connection for product hoses to be connected to equipment. The fitting is fastened with top quality stainless steel jaws.

Construction:

The fitting consists of a connection piece and a set of jaws made of stainless steel that are clamped around the hose while the connection piece is locked in a recess.

  • The clamp fitting can be reused in the event of a hose replacement
  • Connections between DN10 and up to DN100
  • Supplied for connection with Clamp according to DIN standard

Quality:

The connection piece is made of stainless steel AISI 316 with a surface roughness inside of R 0.8 µ and provided with batch number. The jaws are made of stainless steel AISI 304.

Download data sheet
Item number Nominal dim.
mm.
Connection
Clamp liner
Ø ID hose
mm.
Ø OD hose
mm.
Base unit Quantity
04630200614 19,1 DN15 19,1 29-33 PCS
04630200615 19,1 DN20 19,1 29-33 PCS
04630250514 25,0 DN25 25,0 34-36 PCS
04630250515 25,0 DN15 25,0 34-36 PCS
04630250614 25,0 DN25 25,0 35-39 PCS
04630250814 25,0 DN25 25,0 40-43 PCS
04630320614 32,0 DN32 32,0 42-46 PCS
04630320615 32,0 DN40 32,0 42-46 PCS
04630320814 32,0 DN32 32,0 46-50 PCS
04630320815 32,0 DN32 32,0 47-51 PCS
04630380514 38,0 DN40 38,0 47-51 PCS
04630380614 38,0 DN40 38,0 49-53 PCS
04630380814 38,0 DN40 38,0 52-56 PCS
04630500614 51,0 DN50 51,0 62-64 PCS
04630500814 51,0 DN50 51,0 63-67 PCS
04630501014 51,0 DN50 51,0 68-72 PCS
04630630614 63,5 DN65 63,5 74-77 PCS
04630630814 63,5 DN65 63,5 77-81 PCS
04630631014 63,5 DN65 63,5 84-87 PCS
04630750614 76, DN80 76,1 87-90 PCS
04630750814 76,1 DN80 76,1 89-94 PCS
04631020814 101,6 DN100 101,6 114-119 PCS
04631021014 101,6 DN100 101,6 118-122 PCS
