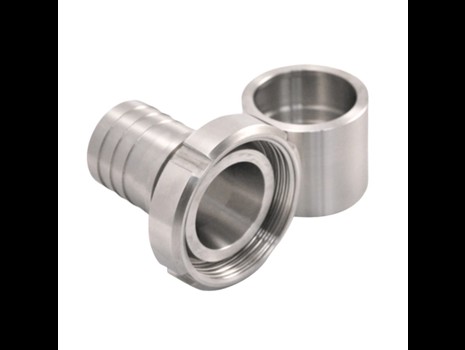

AFT press coupling, DIN union nut
AFT press coupling, DIN union nut

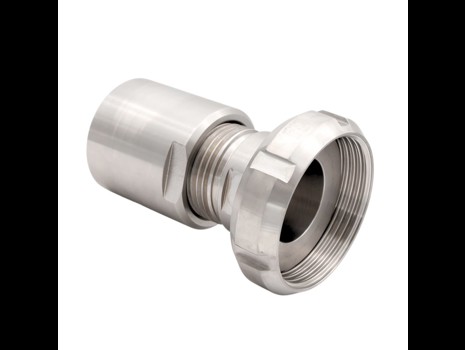

AFT reusable hose couplings, SMS union nut
AFT reusable hose couplings, SMS union nut

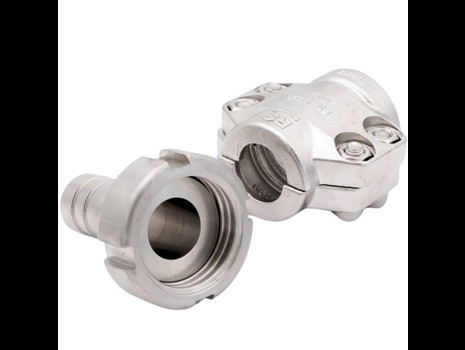

DS union nut
DS union nut

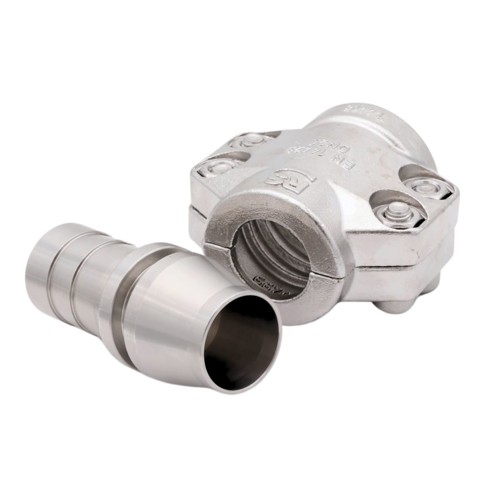

ISO weld end

Application:

Clamp fitting for product hose to be connected to equipment. The fitting is fastened with stainless steel jaws.

Construction:

The fitting consists of a connection piece and a set of jaws made of stainless steel that are clamped together around the hose, while the connection piece is locked in a recess. The clamp fitting can be reused in the event of a hose replacement.

  • Supplied with weld end
  • Connections between 25.0 mm and up to 102.0 mm

Quality:

The connection piece is made of stainless steel AISI 316 with a surface roughness inside of R 0.8 µ and provided with batch number. The jaws are made of stainless steel AISI 304.

Download data sheet
Item number Nominal dim.
mm.		 Ø ID hose
mm.		 Ø OD hose
mm.		 Base unit Quantity
04630130500 25,0 12,7 21-25 PCS
04630200600 25,0 19,1 29-33 PCS
04630250500 25,0 25,0 34-36 PCS
04630250600 25,0 25,0 35-39 PCS
04630250800 25,0 25,0 40-43 PCS
04630320600 32,0 32,0 42-46 PCS
04630320800 32,0 32,0 47-50 PCS
04630380500 38,0 38,0 47-51 PCS
04630380600 38,0 38,0 49-53 PCS
04630380800 38,0 38,0 52-56 PCS
04630500600 51,0 51,0 60-64 PCS
04630500800 51,0 51,0 63-67 PCS
04630501000 51,0 51,0 68-72 PCS
04630630600 63,5 63,5 74-77 PCS
04630630800 63,5 63,5 77-81 PCS
04630631000 63,5 63,5 81-85 PCS
04630750600 76,0 76,0 87-90 PCS
04630750800 76,1 76,0 89-94 PCS
04631020800 101,6 101,6 114-119 PCS
04631021000 101,6 101,6 118-122 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
