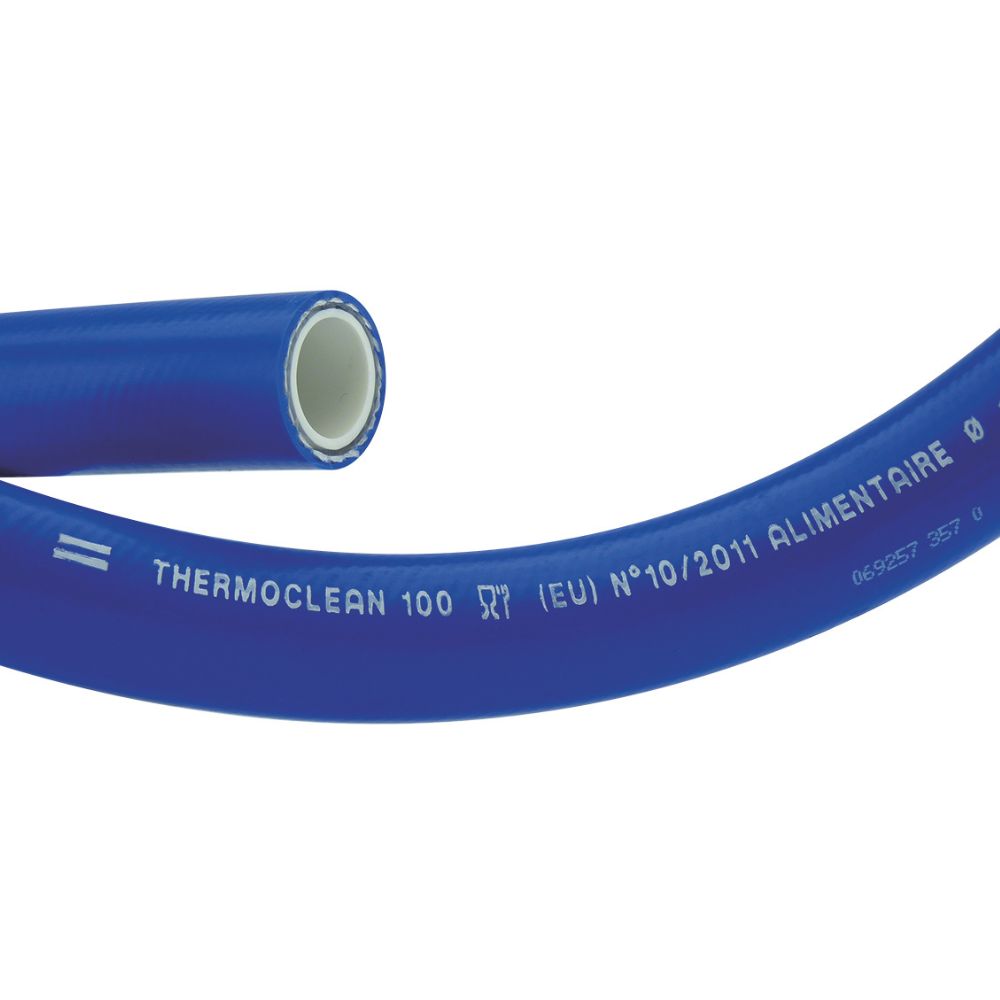

Thermoclean 100 Antimicrobial

Application:

Hot water hose suitable for rinsing and cleaning tasks in the food industry. Can be used for non-fatty foods.

Construction:

Thermoclean 100 Antimicrobial is built in 5 layers made of PVC. Between the inner and outer layers, the hose is reinforced with a layer of resistant polyester. The hose has a strong blue surface, which can withstand grease and detergents. The hose is white and smooth on the inside and blue and smooth on the outside.

  • Resistant to grease and conventional cleaning agents
  • Insulated with a thermal layer, which reduces the risk of scalding
  • Anti-bacterial outer surface
  • Flexible hose and good resistance at high temperatures

Temperature:

The temperature ranges from -15°C to +100°C.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

EC 1935/2004 and 2023/2006/EC (GMP), EU Regulation 10/2011, as well as simulator A, B, and C.

Safety factor:

Maximum up to 30 bar working pressure at + 20°C. Burst pressure of 90 bar.
Maximum up to 15 bar working pressure at + 100°C. Burst pressure of 45 bar.

Approvals:

Eu102011 Blue Rgb Phthalates Free Blue Rgb Knivoggafel Blue Rgb
Item number Inner dia.
mm
Outer dia.
mm
Bending radius
mm.
Working pressure
bar
Arb. Tryk v. +95 C - bar Burst pressure
bar
Color Metres per
coil
Net weight
kg.
Base unit Quantity
0414000130 13,0 22,0 40,0 30,0 15,0 45,0 Blue 40,0 0,306 MTR
0414000160 16,0 25,0 50,0 30,0 15,0 45,0 Blue 40,0 0,358 MTR
0414000200 19,0 28,0 60,0 30,0 15,0 45,0 Blue 40,0 0,408 MTR
0414000250 25,0 34,0 75,0 26,0 13,0 39,0 Blue 40,0 0,513 MTR
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
