Hose reel 3500-3503 AV

Application:

AFT 3500-3501 AV hose reel is a spring reel for flushing hoses on low pressure cleaning systems or other flushing hoses up to 200 bar. Fits 1/2", 3/4" and 1" hose up to 35 meters in length.

Note: Unless otherwise agreed, the hose reel is delivered without hose.

Construction:

Heavy-duty construction made entirely of stainless steel materials, AISI 304, which is surface treated. Hoses are wound up by means of sectional spring, which ensures a uniform extension and winding.

Quality:

The hose reels are made of stainless steel AISI 304.

Accessories:

Can be delivered with hinged wall bracket.

Temperature:

The temperature ranges up to +90°C.

Download data sheet

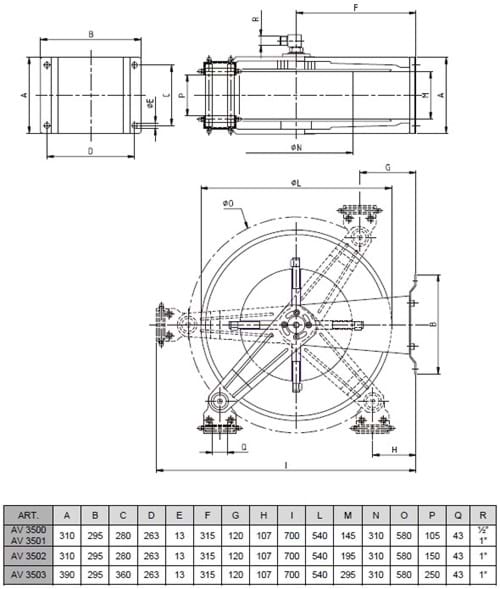

Item number Nominal dim.
inch
Connection
RG
Height B
mm
Bredde D mm. Length L
mm.
Max. hose length
in m
Working pressure
bar
Net weight
kg.
Base unit Quantity
0431003500 1/2" 1/2” 590,0 600,0 310,0 35,0 200,0 26,0 PCS
0431003501 3/4" 1" 590,0 600,0 310,0 20,0 20,0 27,0 PCS
0431003502 3/4" 1" 610,0 600,0 340,0 25,0 20,0 28,0 PCS
0431003503 3/4" 1" 610,0 600,0 340,0 35,0 20,0 29,0 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
