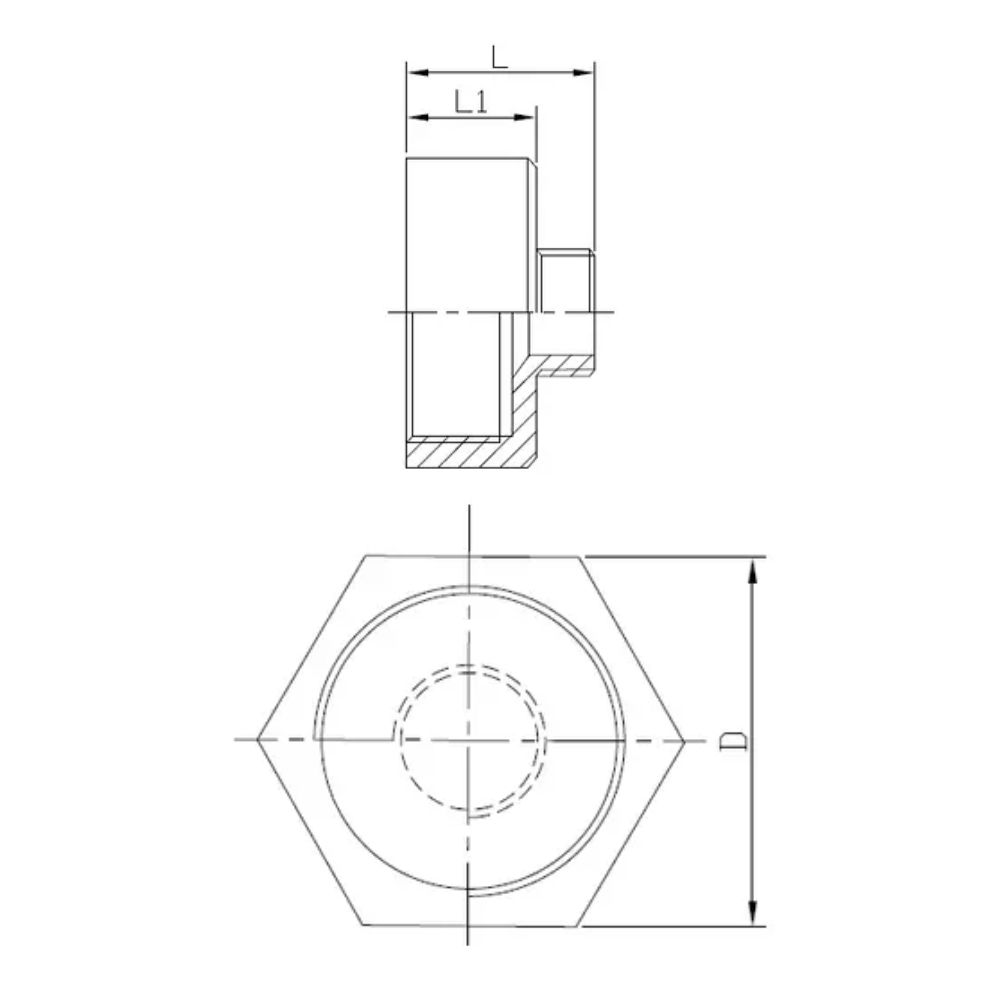

Hexagon reducer

Reducing socket F/M made of stainless steel AISI 316.

Download data sheet
Item number Nominal dim.
inch		 Length L
mm.		 Længde L1 mm. Key width NV
mm.		 Net weight
kg.		 Base unit Quantity
0100369100 1/2" x 3/8" 35,0 22,0 26 0,08 STK.
0100369101 1/2" x 1/4" 34,0 22,0 26 0,08 STK.
0100369130 3/4" x 1/2" 38,5 22,0 32 0,12 STK.
0100369131 3/4" x 3/8" 33,5 23,0 32 0,11 STK.
0100369150 1" x 3/4" 44,0 26,0 38 0,17 STK.
0100369151 1" x 1/2" 41,5 26,0 38 0,16 STK.
0100369170 1 1/4" x 1" 47,0 27,0 46 0,26 STK.
0100369171 1 1/4" x 3/4" 46,0 27,0 46 0,21 STK.
0100369190 1 1/2" x 1 1/4" 50,0 28,0 54 0,33 STK.
0100369191 1 1/2" x 1" 48,0 28,0 54 0,30 STK.
0100369230 2" x 1 1/2" 53,0 30,0 63 0,39 STK.
0100369231 2" x 1 1/4" 52,0 30,0 63 0,37 STK.
0100369232 2" x 1" 50,0 30,0 63 0,36 STK.
