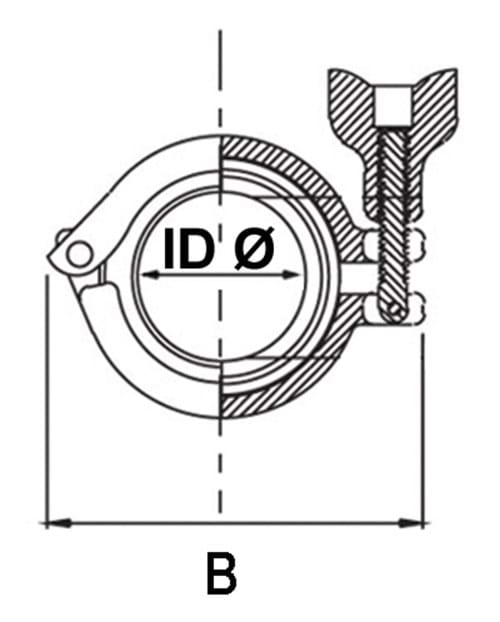

DIN Clamp ring

Hinged at one side and with thumbscrew to close the ring.

Made of stainless steel AISI 304 / EN 1.4301.

Download data sheet

Item number	Nominal dim. mm.	ID Ø dia. mm.	Length B mm	Net weight kg.	Base unit
0101410200	10,0-20,0	34,0	69,0	0,220	PCS
0101410400	25,0-32,0-40,0	50,5	86,0	0,250	PCS
0101410500	50,0	64,0	98,0	0,330	PCS
0101410650	65,0	91,0	126,0	0,39	PCS
0101410800	80,0	106,0	140,0	0,440	PCS
0101411000	100,0	119,0	154,0	0,510	PCS
0101411250	125,0	144,0	194,0	0,750	PCS
0101411251	125,0	155,0	252,0	1,390	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
