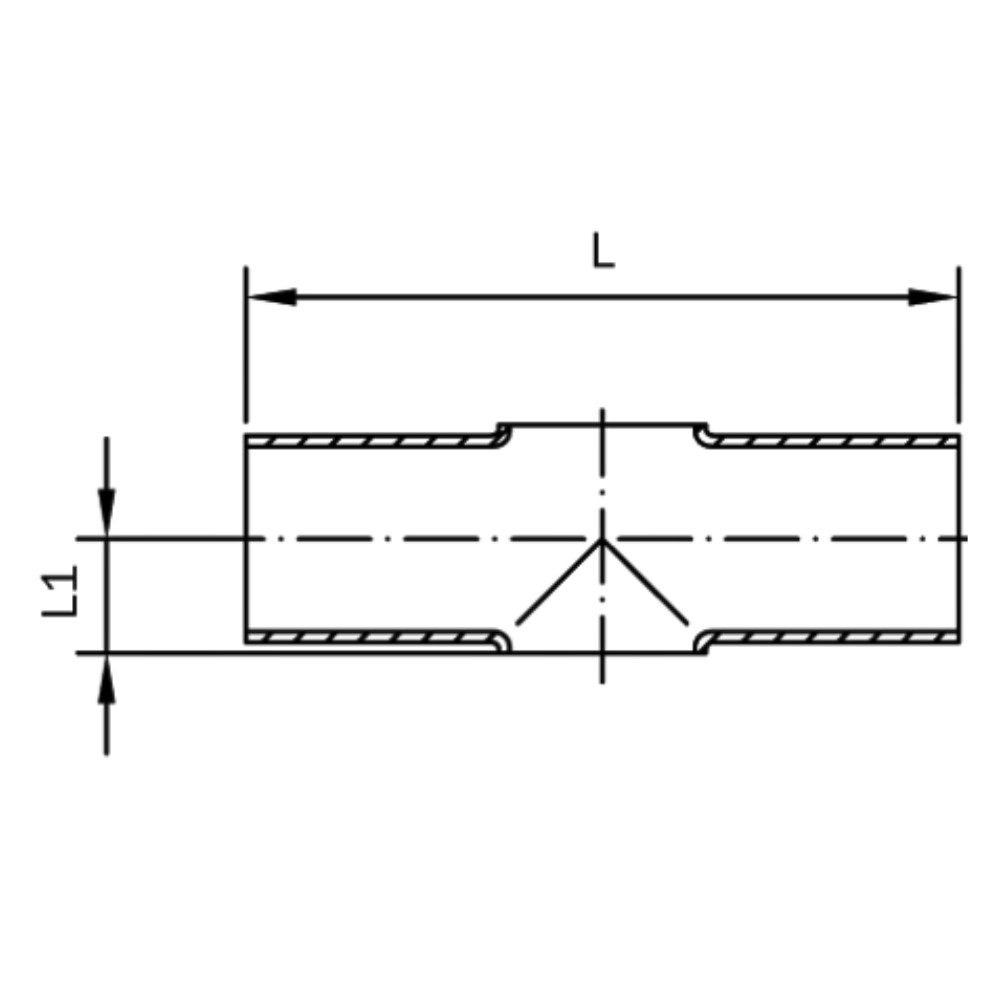

Cross - short, polished, DIN

The exterior of the Cross is ground, while its interior is stained.
Supplied with smooth ends.

Made of AISI 316L/EN 1.4404 stainless steel.

Download data sheet

Item number	Nom. dim. - DN	Nominal dim. mm.	Length L mm.	Installation dim. L mm.	Godstykkelse T - mm.	Net weight kg.	Base unit
0101710020	20	23,0	80,0	13,0	1,50	0,070	PCS
0101710025	25	29,0	100,0	16,0	1,50	0,090	PCS
0101710032	32	35,0	110,0	19,5	1,50	0,120	PCS
0101710040	40	41,0	120,0	23,0	1,50	0,150	PCS
0101710050	50	53,0	140,0	30,0	1,50	0,240	PCS
0101710065	65	70,0	160,0	40,0	2,00	0,460	PCS
0101710080	80	85,0	180,0	47,5	2,00	0,680	PCS
0101710100	100	104,0	200,0	58,0	2,00	0,920	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
