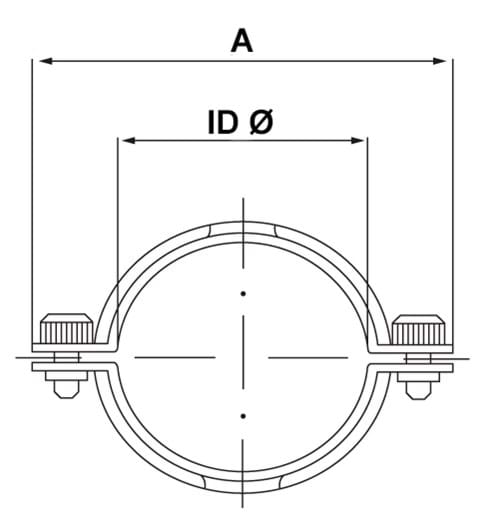

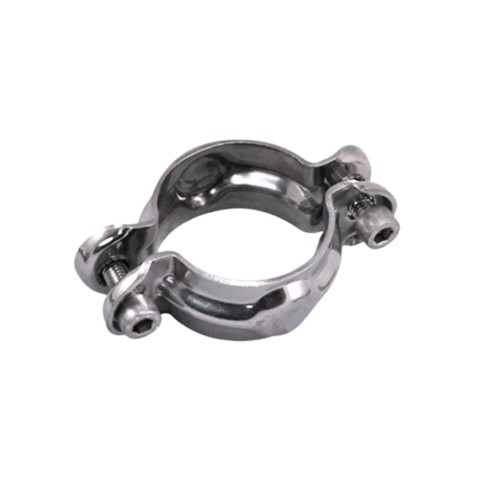

Pipeclip without shaft, Allen bolts, DIN

Delivered with welding base and two Allen screws.

Made of stainless steel AISI 304 / EN 1.4301.

Download data sheet
Item number Nom. dim. - DN ID Ø dia.
mm.		 Width A
mm		 Net weight
kg.		 Base unit Quantity
0102050029 25 26,9-29,0 80,0 0,150 PCS
0102050035 32 34,0-35,0 88,0 0,160 PCS
0102050041 40 40,0-41,0 93,0 0,170 PCS
0102050053 50 52,0-53,0 107,0 0,200 PCS
0102050070 65 70,0-71,0 123,0 0,230 PCS
0102050085 80 84,0-85,0 137,0 0,260 PCS
0102050104 100 104,0-106,0 157,0 0,300 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
