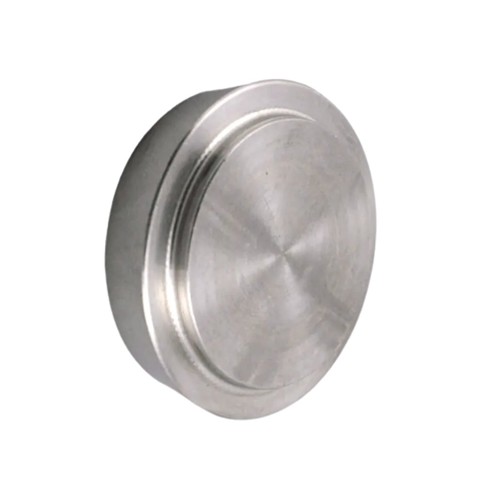

DIN Blind

Made of stainless steel AISI 316L / EN 1.4404.

Standard DIN 11851.

Download data sheet

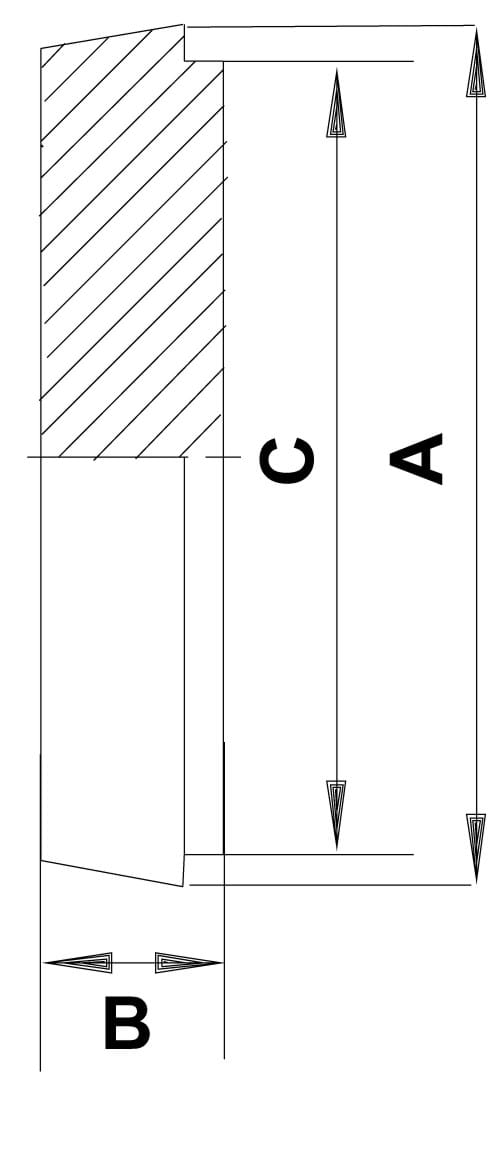

Item number	Nominal dim. mm.	A dia. mm	C dia. mm.	Length B mm	Net weight kg.	Base unit
0101330100	10,0	22,0	18,0	9,0	0,020	PCS
0101330150	15,0	28,0	24,0	9,0	0,040	PCS
0101330200	20,0	36,0	30,0	11,0	0,070	PCS
0101330250	25,0	44,0	35,0	13,0	0,130	PCS
0101330320	32,0	50,0	41,0	13,0	0,170	PCS
0101330400	40,0	56,0	48,0	13,0	0,220	PCS
0101330500	50,0	68,0	61,0	14,0	0,350	PCS
0101330650	65,0	86,0	79,0	16,0	0,670	PCS
0101330800	80,0	100,0	93,0	16,0	0,920	PCS
0101331000	100,0	121,0	114,0	20,0	1,340	PCS
0101331250	125,0	150,0	137,0	22,0	1,680	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
