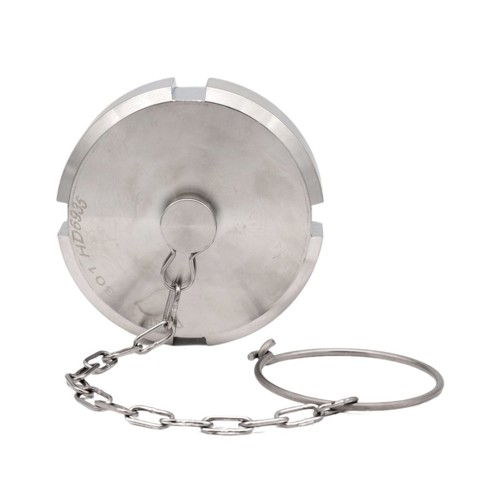

DIN Blind nut with pin & chain

Designed with grooves for hook spanners.
Delivered with pin and chain.

Made of stainless steel AISI 304 / EN 1.4301.

Standard DIN 11851.

Download data sheet

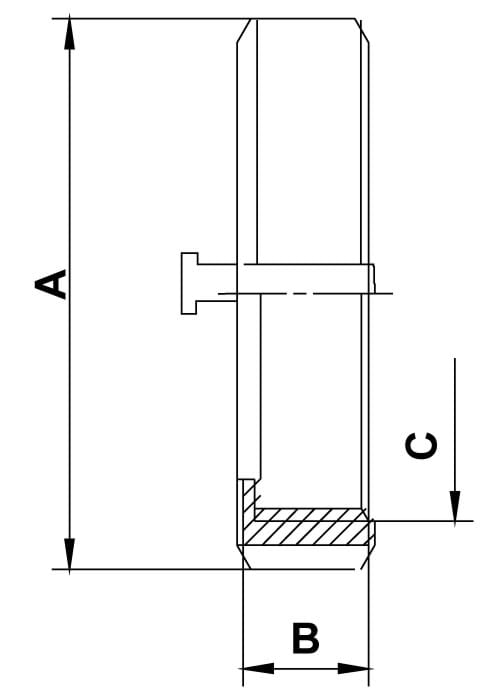

Item number	Nominal dim. mm.	A dia. mm	C dia. mm.	Length B mm	Net weight kg.	Base unit
0101360100	10	38,0	28,0 x 1/8	18,0	0,12	PCS
0101360150	15	44,0	34,0 x 1/8	18,0	0,15	PCS
0101360200	20	54,0	44,0 x 1/6	20,0	0,19	PCS
0101360250	25,0	63,0	52,0 x 1/6"	21,0	0,130	PCS
0101360320	32,0	70,0	58,0 x 1/6"	21,0	0,170	PCS
0101360400	40,0	78,0	65,0 x 1/6"	21,0	0,220	PCS
0101360500	50,0	92,0	78,0 x 1/6"	22,0	0,350	PCS
0101360650	65,0	112,0	95,0 x 1/6"	25,0	0,670	PCS
0101360800	80,0	127,0	110,0 x 1/4"	29,0	0,920	PCS
0101361000	100,0	148,0	130,0 x 1/4"	31,0	1,340	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
