DIN Male, weld on

Internal surface roughness of R 0.8 µ and provided with a batch number.
Designed with collar for welding on stainless steel dairy pipes.

Made of AISI 316L / EN 1.4404 stainless steel.

Standard DIN 11851.

Download data sheet

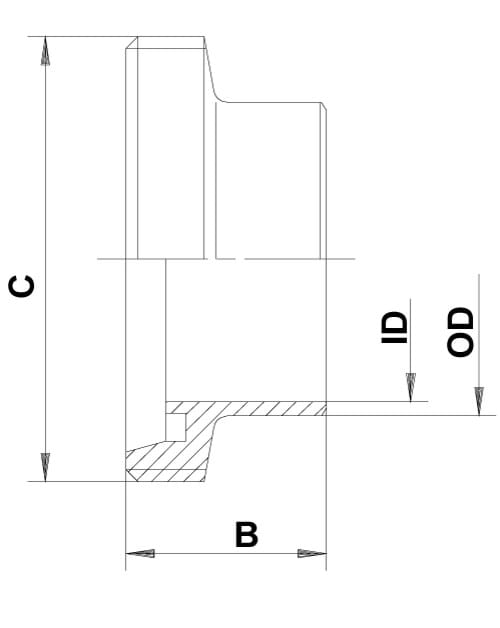

Item number Nominal dim.
mm.
C dia.
mm.
ID Ø dia.
mm.
OD Ø dia.
mm.
Length B
mm
Net weight
kg.
Base unit Quantity
0101310100 10,0 28,0 x 1/8" 10,0 13,0 21,0 0,030 PCS
0101310150 15,0 34,0 x 1/8" 15,0 19,0 21,0 0,040 PCS
0101310200 20,0 44,0 x 1/6" 19,0 23,0 24,0 0,080 PCS
0101310250 25,0 52,0 x 1/6" 25,0 29,0 29,0 0,110 PCS
0101310320 32,0 58,0 x 1/6" 32,0 35,0 32,0 0,140 PCS
0101310400 40,0 65,0 x 1/6" 39,0 41,0 33,0 0,160 PCS
0101310500 50,0 78,0 x 1/6" 50,0 53,0 35,0 0,220 PCS
0101310650 65,0 95,0 x 1/6" 66,0 70,0 40,0 0,360 PCS
0101310800 80,0 110,0 x 1/4" 81,0 85,0 45,0 0,560 PCS
0101311000 100,0 130,0 x 1/4" 100,0 104,0 54,0 1,020 PCS
0101311250 125,0 0 125,0 129,0 46,0 0,920 PCS
0101311500 150,0 190,0 x 1/4” 150,0 154,0 50,0 0 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
