DIN Nut

Designed with grooves for hook spanners.

Made of stainless steel AISI 304 / EN 1.4301.

Standard DIN 118851.

Download data sheet

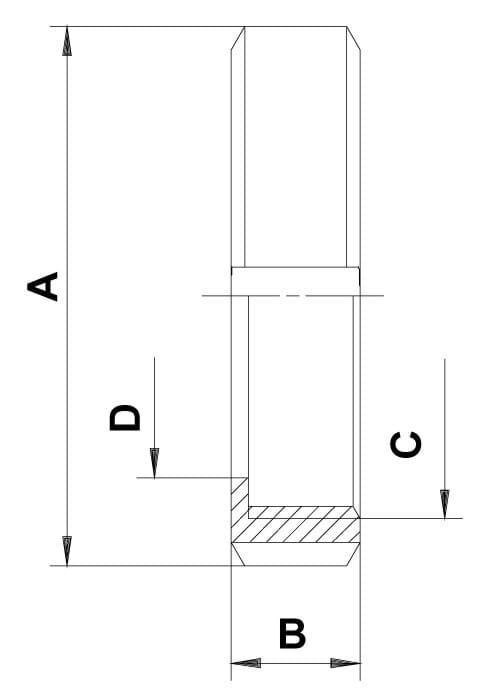

Item number	Nominal dim. mm.	A dia. mm	C dia. mm.	D dia. mm.	Length B mm	Net weight kg.	Base unit
0101300100	10,0	38,0	28,0 x 1/8"	19,0	18,0	0,070	PCS
0101300150	15,0	44,0	34,0 x 1/8"	25,0	18,0	0,080	PCS
0101300200	20,0	54,0	44,0 x 1/6"	31,0	20,0	0,080	PCS
0101300250	25,0	63,0	52,0 x 1/6"	36,0	21,0	0,130	PCS
0101300320	32,0	70,0	58,0 x 1/6"	42,0	21,0	0,220	PCS
0101300400	40,0	78,0	65,0 x 1/6"	49,0	21,0	0,240	PCS
0101300500	50,0	92,0	78,0 x 1/6"	62,0	22,0	0,320	PCS
0101300650	65,0	112,0	95,0 x 1/6"	80,0	25,0	0,530	PCS
0101300750	75,0	120,0	104,0 x 1/6"	86,5	31,0	0,650	PCS
0101300800	80,0	127,0	110,0 x 1/4"	94,0	29,0	0,720	PCS
0101301000	100,0	148,0	130,0 x 1/4"	115,0	31,0	0,970	PCS
0101301250	125,0	178,0	160,0 x 1/4"	138,0	35,0	1,450	PCS
0101301500	150,0	210,0	190,0 x 1/4"	164,0	40,0	2,150	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
