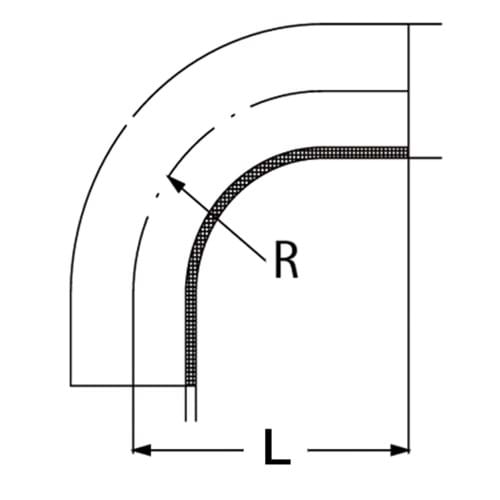

Elbow 90°, ISO

Stained on the inside and ground on the outside.
Delivered with smooth ends.

Made of stainless steel AISI 316L / EN 1.4404.

Item number Nominal dim.
mm.
Installation dim. L
mm.
Radius
mm
Godstykkelse T - mm. Net weight
kg.
Base unit Quantity
0101010250 25,0 65,0 37,5 1,20 0,053 PCS
0101010380 38,0 85,0 57,0 1,20 0,167 PCS
0101010510 51,0 110,0 76,5 1,20 0,297 PCS
0101010640 63,5 135,0 95,3 1,60 0,538 PCS
0101010760 76,1 155,0 114,2 1,60 0,770 PCS
0101011016 101,6 195,0 152,5 2,00 1,588 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
