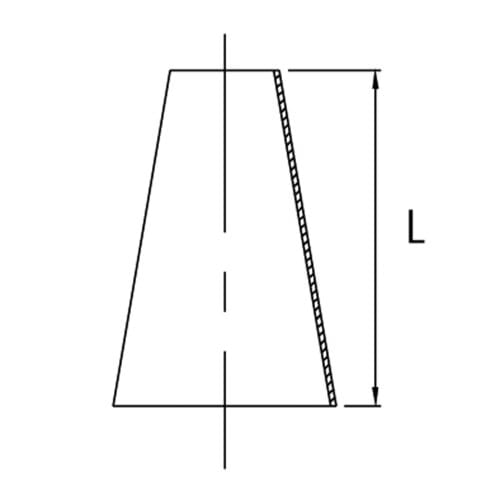

Reducer - concentric, DS/SMS

Stained on the inside and ground on the outside.
Delivered with smooth ends.

Made of stainless steel AISI 316L / EN 1.4404.

Download data sheet
Item number Nominal dim.
mm.
Length L
mm.
Godstykkelse T - mm. Net weight
kg.
Base unit Quantity
0101080380 38,0 x 25,0 39,0 1,20 0,050 PCS
0101080510 51,0 x 25,0 77,4 1,20 0,100 PCS
0101080511 51,0 x 38,0 40,5 1,20 0,070 PCS
0101080640 63,5 x 38,0 76,4 1,20 0,120 PCS
0101080641 63,5 x 51,0 36,9 1,20 0,080 PCS
0101080760 76,1 x 51,0 72,0 1,20 0,210 PCS
0101080761 76,1 x 63,5 35,7 1,60 0,110 PCS
0101080763 76,1 x 38,0 68,8 1,60 0,25 PCS
0101081020 101,6 x 63,5 105,0 2,00 0,400 PCS
0101081021 101,6 x 76,1 77,6 2,00 0,350 PCS
0101081022 101,6 x 51,0 94,7 2,00 0,350 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
