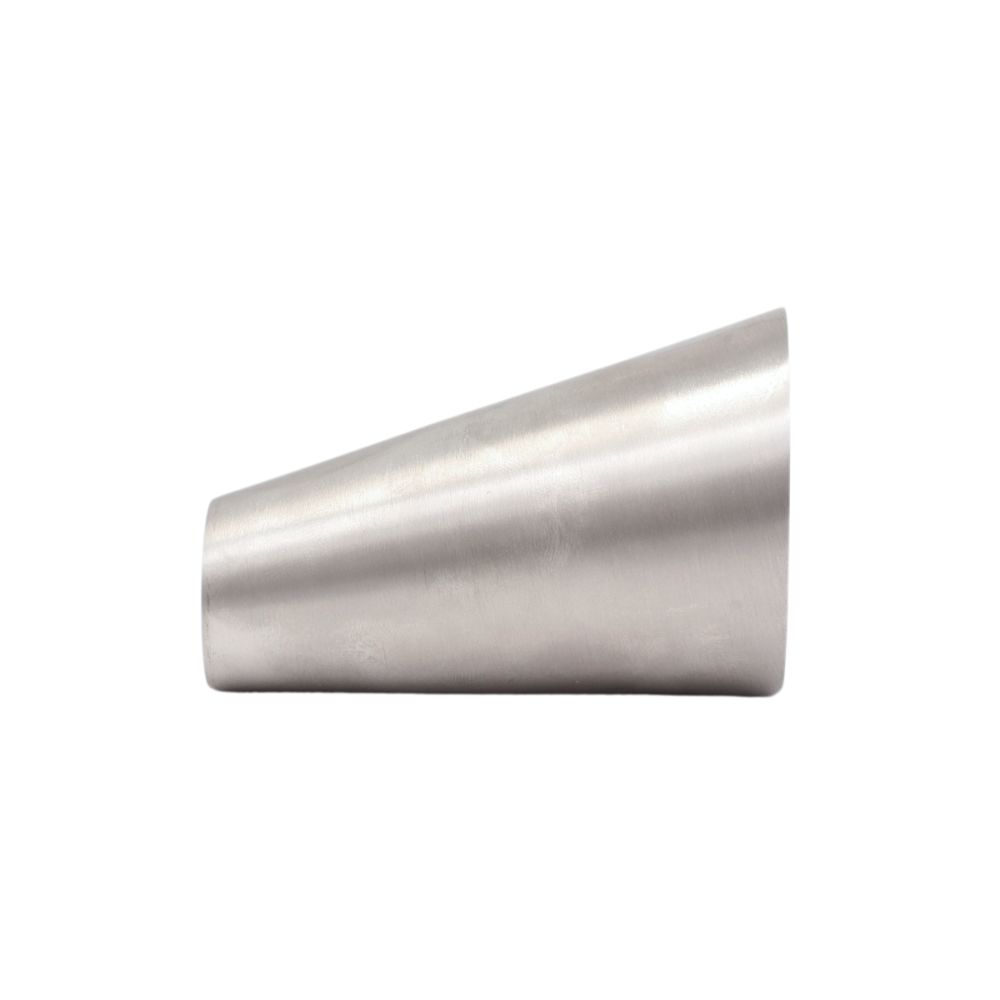

Reducer - eccentric, DS/SMS

Stained on the inside and ground on the outside.
Delivered with smooth ends.

Made of stainless steel AISI 316L / EN 1.4404.

Download data sheet

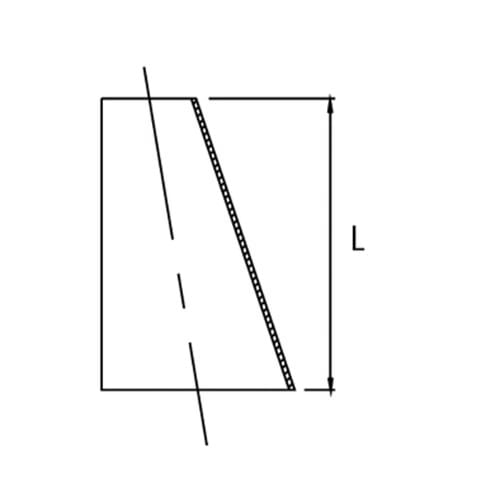

Item number	Nominal dim. mm.	Length L mm.	Godstykkelse T - mm.	Net weight kg.	Base unit
0101100380	38,0 x 25,0	37,4	1,20	0,050	PCS
0101100510	51,0 x 25,0	76,7	1,20	0,100	PCS
0101100511	51,0 x 38,0	40,0	1,20	0,070	PCS
0101100640	63,5 x 38,0	82,0	1,20	0,120	PCS
0101100641	63,5 x 51,0	37,5	1,20	0,080	PCS
0101100760	76,1 x 51,0	70,2	1,20	0,210	PCS
0101100761	76,1 x 63,5	39,0	1,60	0,110	PCS
0101101020	101,6 x 63,5	94,6	2,00	0,300	PCS
0101101021	101,6 x 76,1	76,7	2,00	0,350	PCS
0101101022	101,6 x 51,0	140,0	2,00	0,275	PCS
