DS Nut

Designed with grooves for hook spanners.

Made of stainless steel AISI 304 / EN 1.4301.

Download data sheet

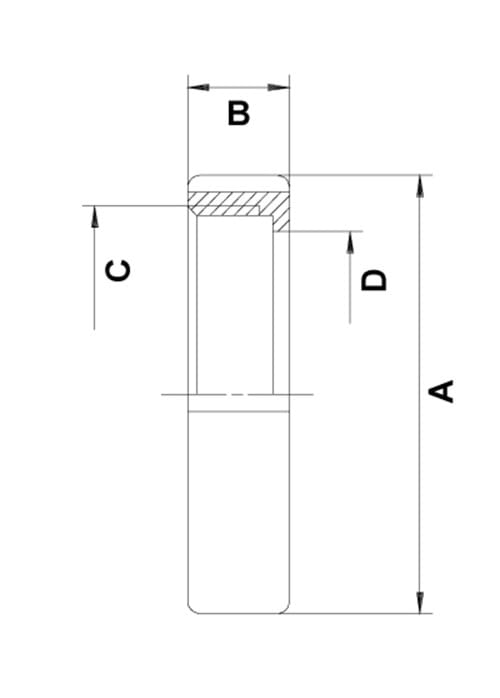

Item number Nominal dim.
mm.		 A dia.
mm		 C dia.
mm.		 D dia.
mm.		 Length B
mm		 Net weight
kg.		 Base unit Quantity
0101120250 25,0 57,0 44,0 x 1/6 35,0 20,0 0,170 PCS
0101120380 38,0 71,0 58,0 x 1/6 48,5 20,0 0,220 PCS
0101120510 51,0 86,0 72,0 x 1/6 62,5 22,0 0,320 PCS
0101120640 63,5 103,0 88,0 x 1/6 76,5 24,0 0,460 PCS
0101120760 76,1 115,0 100,0 x 1/6 88,5 25,0 0,570 PCS
0101121020 101,6 150,0 130,0 x 1/4 117,0 28,0 1,100 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
