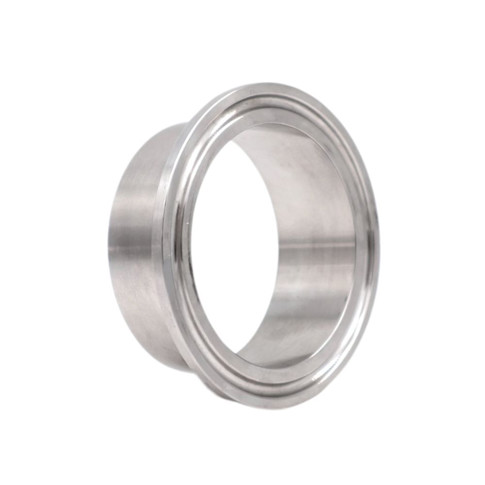

Clamp liner

Internal surface roughness of R 0.8 µ and provided with a batch number.
Designed with collar for welding on stainless steel dairy pipes.

Made of AISI 316L / EN 1.4404 stainless steel.

Download data sheet

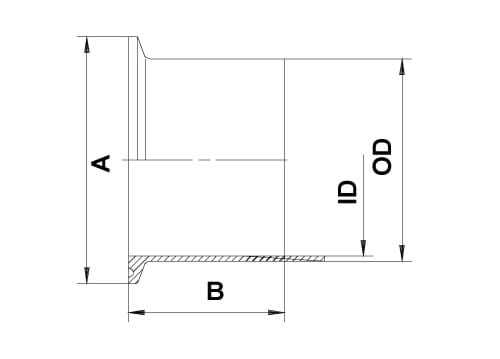

Item number	Nominal dim. mm.	A dia. mm	ID Ø dia. mm.	OD Ø dia. mm.	Length B mm	Net weight kg.	Base unit
0101420250	25,0	50,5	22,6	25,0	21,5	0,068	PCS
0101420380	38,0	50,5	35,6	38,0	21,5	0,068	PCS
0101420510	51,0	63,9	48,6	51,0	21,5	0,052	PCS
0101420640	63,5	77,4	61,1	63,5	21,5	0,052	PCS
0101420760	76,1	90,9	72,9	76,1	21,5	0,106	PCS
0101421020	101,6	118,9	97,6	101,6	21,5	0,128	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
