SMS Liner, expansion

Internal surface roughness of R 0.8 µ and provided with a batch number.
Designed with grooves for deep rolling on stainless steel dairy pipes.

Made of AISI 304 / EN 1.4301 stainless steel.

Download data sheet

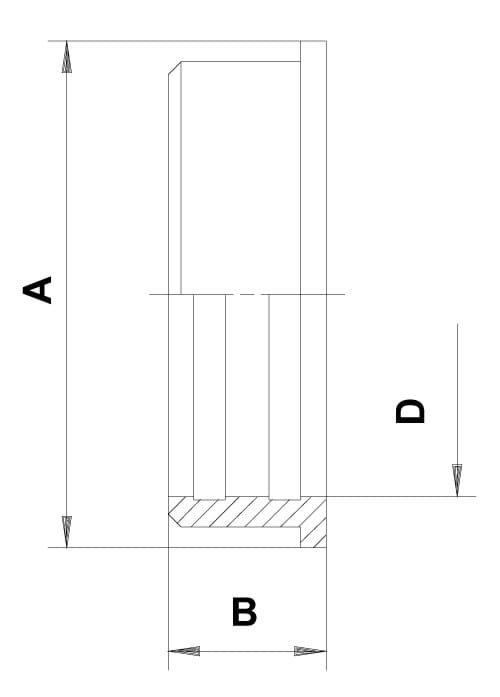

Item number	Nominal dim. mm.	A dia. mm	D dia. mm.	Length B mm	Net weight kg.	Base unit
0101220250	25,0	35,5	25,2	17,0	0,120	PCS
0101220380	38,0	55,0	38,2	18,0	0,270	PCS
0101220510	51,0	65,0	51,2	20,0	0,330	PCS
0101220640	63,5	80,0	63,8	22,0	0,430	PCS
0101220760	76,0	93,0	76,3	24,0	0,590	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
