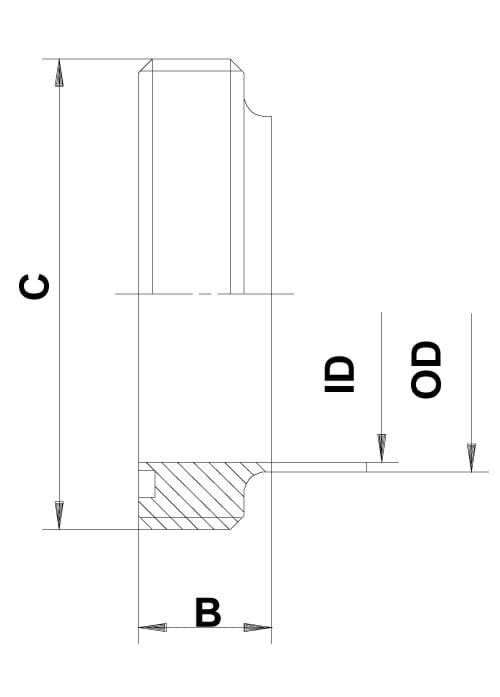

SMS Male, weld on

Internal surface roughness of R 0.8 µ and provided with a batch number.
Designed with collar for welding on stainless steel dairy pipes.

Made of AISI 316L / EN 1.4404 stainless steel.

Download data sheet
Item number Nominal dim.
mm.
C dia.
mm.
ID Ø dia.
mm.
OD Ø dia.
mm.
Length B
mm
Net weight
kg.
Base unit Quantity
0101230250 25,0 40,0 x 1/6" 22,6 25,6 15,0 0,060 PCS
0101230380 38,0 60,0 x 1/6" 35,6 38,6 20,0 0,160 PCS
0101230510 51,0 70,0 x 1/6" 48,6 51,6 20,0 0,180 PCS
0101230640 63,5 85,0 x 1/6" 60,3 64,1 24,0 0,340 PCS
0101230760 76,1 98,0 x 1/6" 72,9 76,7 24,0 0,450 PCS
0101231020 101,6 132,0 x 1/6" 97,6 102,5 25,0 1,320 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
