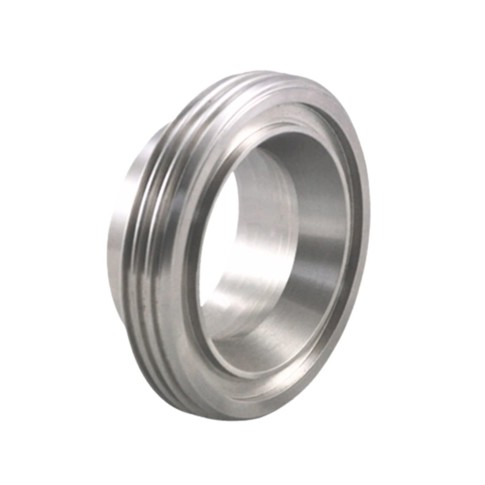

SMS Reduction male, weld on

Internal surface roughness of R 0.8 ยต and provided with a batch number.
Designed with collar for welding on stainless steel dairy pipes.

Made of AISI 316L / EN 1.4404 stainless steel.

Download data sheet

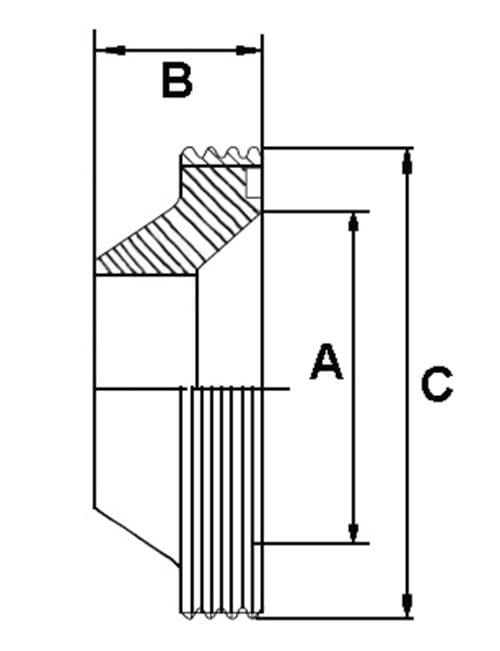

Item number Nominal dim.
mm.
A dia.
mm
C dia.
mm.
Length B
mm
Net weight
kg.
Base unit Quantity
0101260380 38,0/25,0 35,5 60 x 1/6" 30,0 0,170 PCS
0101260510 51,0/25,0 48,5 70 x 1/6" 32,0 0,190 PCS
0101260511 51,0/38,0 48,5 70 x 1/6" 38,0 0,190 PCS
0101260640 63,5/38,0 60,5 85 x 1/6" 42,0 0,360 PCS
0101260641 63,5/51,0 60,5 85 x 1/6" 42,0 0,360 PCS
0101260760 76,1/51,0 72,0 98 x 1/6" 44,0 0,420 PCS
0101260761 76,1/63,5 72,0 98 x 1/6" 44,0 0,420 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
