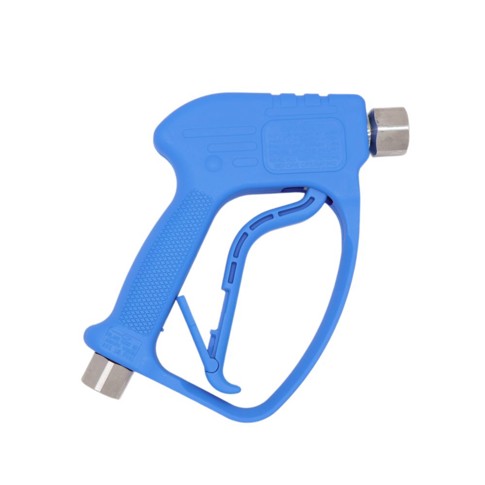

AFT low-pressure gun RL82

Application:

RL82 spray gun for low-pressure systems, rinsing and cleaning tasks with or without cleaning agents and a working pressure up to 125 bar.

Construction:

  • Ergonomically correct design
  • Connection: 1/2” BSP internal thread with swivel
  • Outlet 1/2” BSP union nut
  • Trigger with close/open function
  • The spray gun can be mounted with quick-coupling for connecting lances or nozzles

Quality:

  • Stainless steel valve housing embedded in impact-resistant plastic housing
  • The valve parts are made of stainless steel
  • The gaskets are made of EPDM rubber

Operating conditions:

  • The temperature ranges up to max. +160°C
  • Pressure: Max. 125 bar
  • Water volume: 80 litres per minute at concentrated jet
Download data sheet
Item number Max.
temperature C
Kapacitet - liter/min Coupling housing Working pressure
bar
Base unit Quantity
05870RL082 160°C 80,0 Without 125,0 PCS
05870RL082C 160°C 80,0 With 125,0 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
