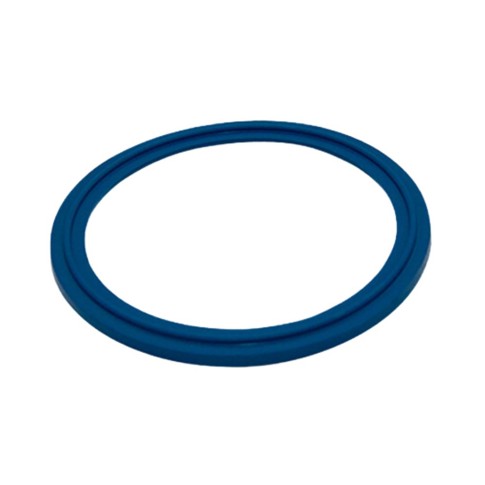

Clamp union lip gasket, EPDM, blue

Application:

  • Gasket for dairy pipe unions, type CLAMP
  • Good resistance to many organic liquids, including acids, lye and especially CIP
  • Not suitable for mineral oils and grease

Construction:

Made of ethylene propylene diene monomer rubber, EPDM.

Standards:

Certified by FDA/USP.

Temperature:

The temperature ranges from -40°C to +150°C.

Item number Nominal dim.
mm.
ID Ø dia.
mm.
OD Ø dia.
mm.
Height H
mm.
Elastomer
type
Base unit Quantity
0304069150 25,0 22,8 50,5 2,1 EPDM PCS
0304069190 38,0 35,8 50,5 2,1 EPDM PCS
0304069230 51,0 48,8 64,0 2,1 EPDM PCS
0304069250 63,5 60,5 77,5 2,1 EPDM PCS
0304069270 76,1 73,1 91,0 2,1 EPDM PCS
0304069290 101,6 97,8 119,0 2,1 EPDM PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
