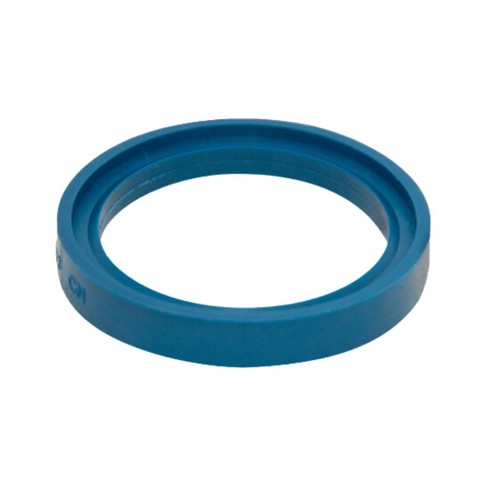

IDF union gasket, EPDM, T-shape

Application:

  • Gasket for dairy pipe unions, type IDF
  • Good resistance to many organic liquids, including acids, lye and especially CIP
  • Not suitable for mineral oils and grease

Construction:

Made of ethylene propylene diene monomer rubber, EPDM.

Standards:

Certified by FDA/USP.

Temperature:

The temperature ranges from -40°C to +150°C.

Download data sheet
Item number Nominal dim.
inch
ID Ø dia.
mm.
OD Ø dia.
mm.
Height H
mm.
Elastomer
type
Base unit Quantity
0305069150 1" 23,2 29,2 7,0 EPDM PCS
0305069190 1½" 35,9 42,7 7,0 EPDM PCS
0305069230 2" 48,6 56,2 7,0 EPDM PCS
0305069250 2½" 61,3 69,9 7,0 EPDM PCS
0305069270 3" 74,0 82,6 7,0 EPDM PCS
0305069290 4" 98,6 111,0 7,0 EPDM PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
