DIN Clamp liner

Application:

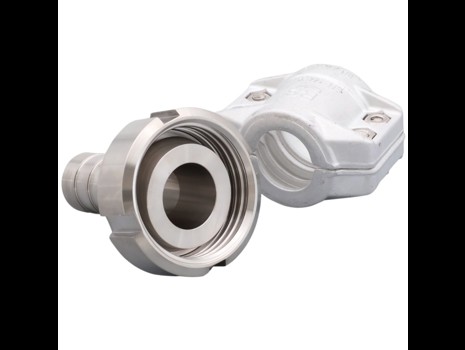

Clamp fitting with DIN CLAMP connection for product hoses to be connected to equipment. The fitting is fastened with aluminium jaws that provide a relatively low weight.

Construction:

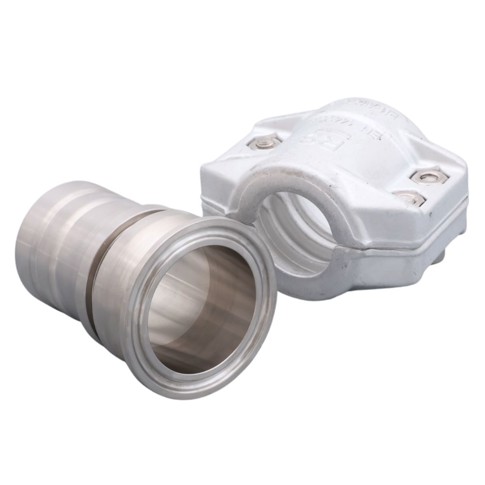

The fitting consists of a connection piece and a set of jaws made of aluminium that are clamped around the hose while the connection piece is locked in a recess.

  • The clamp fitting can be reused in the event of a hose replacement
  • Connections between DN10 and up to DN100
  • Supplied for connection with CLAMP according to DIN standard

Quality:

The connection piece is made of stainless steel AISI 316 with a surface roughness inside of R 0.8 ยต and provided with batch number. The jaws are made of aluminium.

Download data sheet
Item number Nominal dim.
mm.
Connection
Clamp liner
ร˜ ID hose
mm.
ร˜ OD hose
mm.
Base unit Quantity
0462130514 12,7 DN10 12,7 21-25 PCS
0462130515 12,7 DN15 12,7 21-25 PCS
0462200614 19,1 DN15 19,1 29-33 PCS
0462200615 19,1 DN20 19,1 29-33 PCS
0462250614 25,0 DN25 25,0 36-39 PCS
0462250814 25,0 DN25 25,0 40-43 PCS
0462320614 32,0 DN32 32,0 42-46 PCS
0462320615 32,0 DN40 32,0 42-46 PCS
0462320814 32,0 DN32 32,0 46-50 PCS
0462320815 32,0 DN40 32,0 46-50 PCS
0462380514 38,0 DN40 38,0 47-51 PCS
0462380614 38,0 DN40 38,0 49-53 PCS
0462380814 38,0 DN40 38,0 52-56 PCS
0462500614 51,0 DN50 51,0 62-64 PCS
0462500814 51,0 DN50 51,0 63-67 PCS
0462501014 51,0 DN50 51,0 68-72 PCS
0462630614 63,5 DN65 63,5 74-77 PCS
0462630814 63,5 DN65 63,5 77-81 PCS
0462631014 63,5 DN65 63,5 84-87 PCS
0462750614 76,1 DN80 76,1 87-90 PCS
0462750814 76,1 DN80 76,1 89-94 PCS
0462751014 76,1 DN80 76,1 94-98 PCS
0462751214 76,1 DN80 76,1 98-101 PCS
0462990814 101,6 DN100 101,6 114-119 PCS
0462991014 101,6 DN100 101,6 118-122 PCS
0462991614 101,6 DN100 101,6 130-134 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
