DIN union nut

Application:

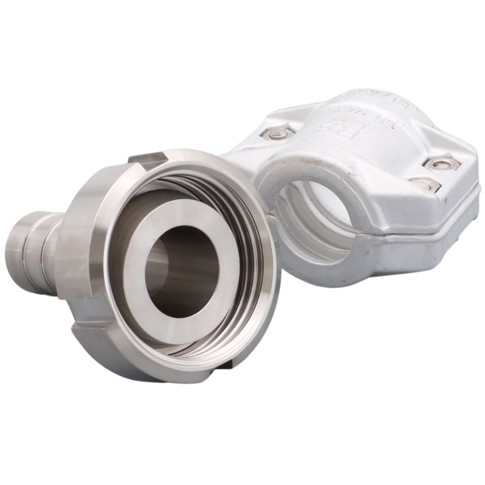

Clamp fitting with DIN connection for product hoses to be connected to equipment. The fitting is fastened with aluminium jaws that provide a relatively low weight.

Construction:

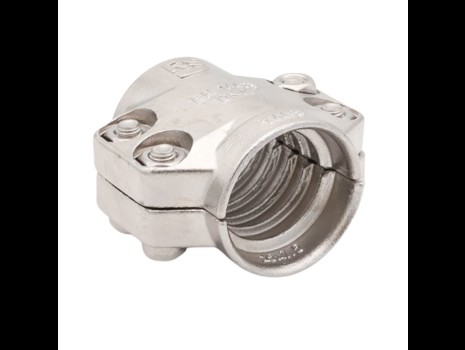

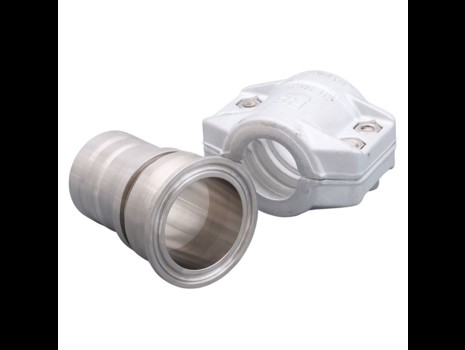

The fitting consists of a connection piece and a set of jaws made of aluminium that are clamped around the hose while the connection piece is locked in a recess.

  • The clamp fitting can be reused in the event of a hose replacement
  • Connections between DIN 25 and up to DIN 100
  • Supplied with union nut according to DIN standard

Quality:

The connection piece is made of stainless steel AISI 316 with a surface roughness inside of R 0.8 µ and provided with batch number. The jaws are made of aluminium.

Download data sheet
Item number Nominal dim.
mm.
Connection DIN
nut
Ø ID hose
mm.
Ø OD hose
mm.
Base unit Quantity
0462130503 12,7 DN15 12,7 21-25 PCS
0462200603 19,1 DN20 19,1 29-33 PCS
0462250603 25,0 DN25 25,0 36-39 PCS
0462250803 25,0 DN25 25,0 40-43 PCS
0462320603 32,0 DN32 32,0 42-46 PCS
0462320803 32,0 DN32 32,0 46-50 PCS
0462380503 38,0 DN40 38,0 47-51 PCS
0462380507 38,0 DN50 38,0 47-51 PCS
0462380603 38,0 DN40 38,0 49-53 PCS
0462380607 38,0 DN50 38,0 49-53 PCS
0462380803 40,0 DN 40 38,0 52-56 PCS
0462380807 38,0 DN50 38,0 52-56 PCS
0462500603 51,0 DN 50 51,0 62-64 PCS
0462500803 51,0 DN 50 51,0 63-67 PCS
0462501003 51,0 DIN 50 51,0 68-72 PCS
0462630603 63,5 DN65 63,5 74-77 PCS
0462630803 63,5 DN 65 63,5 77-81 PCS
0462631003 63,5 DN65 63,5 84-87 PCS
0462750603 76,1 DN 80 76,1 87-90 PCS
0462750803 76,1 DN 80 76,1 89-94 PCS
0462751003 80,0 DN80 76,1 94-98 PCS
0462751203 76,1 DN 80 76,1 98-101 PCS
0462990803 101,6 DN 100 101,6 114-119 PCS
0462991003 101,6 DN100 101,6 118-122 PCS
0462991603 101,6 DN 100 101,6 130-134 PCS
