ISO Clamp liner

ISO Clamp liner

Application:

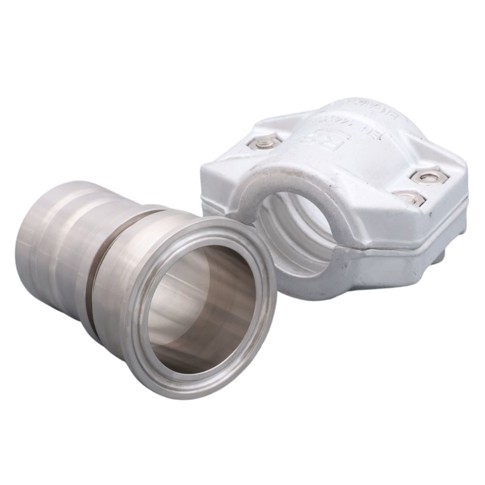

Clamp fitting with CLAMP connection for product hoses to be connected to equipment. The fitting is fastened with aluminium jaws that provide a relatively low weight.

Construction:

The fitting consists of a connection piece and a set of jaws made of aluminium that are clamped around the hose while the connection piece is locked in a recess.

The clamp fitting can be reused in the event of a hose replacement
Connections between 25.0 mm and up to 102.0 mm.
Supplied for connection with CLAMP

Quality:

The connection piece is made of stainless steel AISI 316 with a surface roughness inside of R 0.8 µ and provided with batch number. The jaws are made of aluminium.

Item number	Nominal dim. mm.	Connection Clamp liner	Ø ID hose mm.	Ø OD hose mm.	Base unit
0462130504	12,7	25,0	12,7	21-25	PCS
0462200604	19,1	25,0	19,1	29-33	PCS
0462250604	25,0	25,0	25,0	36-39	PCS
0462250608	25,0	38,0	25,0	36-39	PCS
0462250612	25,0	51,0	25,0	36-39	PCS
0462250804	25,0	25,0	25,0	40-43	PCS
0462250808	25,0	38,0	25,0	40-43	PCS
0462250812	25,0	51,0	25,0	40-43	PCS
0462320608	32,0	38,0	32,0	42-46	PCS
0462320808	32,0	38,0	32,0	46-50	PCS
0462380504	38,0	38,0	38,0	47-51	PCS
0462380508	38,0	51,0	38,0	47-51	PCS
0462380604	38,0	38,0	38,0	49-53	PCS
0462380608	38,0	51,0	38,0	49-53	PCS
0462380804	38,0	38,0	38,0	52-56	PCS
0462380808	38,0	51,0	38,0	52-56	PCS
0462500604	51,0	51,0	51,0	62-64	PCS
0462500608	51,0	63,5	51,0	62-64	PCS
0462500804	51,0	51,0	51,0	63-67	PCS
0462500808	51,0	63,5	51,0	63-67	PCS
0462501004	51,0	51,0	51,0	68-72	PCS
0462501008	51,0	63,5	51,0	68-72	PCS
0462630604	63,5	63,5	63,5	74-77	PCS
0462630608	63,5	76,1	63,5	74-77	PCS
0462630804	63,5	63,5	63,5	77-81	PCS
0462630808	63,5	76,1	63,5	77-81	PCS
0462631004	63,5	63,5	63,5	84-87	PCS
0462631008	63,5	76,1	63,5	84-87	PCS
0462750604	76,1	76,1	76,1	87-90	PCS
0462750804	76,1	76,1	76,1	89-94	PCS
0462751004	76,1	76,1	76,1	94-98	PCS
0462751204	76,1	76,1	76,1	98-101	PCS
0462990804	101,6	101,6	101,6	114-119	PCS
0462991004	101,6	101,6	101,6	118-122	PCS
0462991604	101,6	101,6	101,6	130-134	PCS

Item number

Nominal dim.
mm.

Connection
Clamp liner

Ø ID hose
mm.

Ø OD hose
mm.

Base unit

Quantity

0462130504

12,7

25,0

12,7

21-25

PCS

0462200604

19,1

25,0

19,1

29-33

PCS

0462250604

25,0

36-39

PCS

0462250608

25,0

38,0

25,0

36-39

PCS

0462250612

25,0

51,0

25,0

36-39

PCS

0462250804

25,0

40-43

PCS

0462250808

25,0

38,0

25,0

40-43

PCS

0462250812

25,0

51,0

25,0

40-43

PCS

0462320608

32,0

38,0

32,0

42-46

PCS

0462320808

32,0

38,0

32,0

46-50

PCS

0462380504

38,0

47-51

PCS

0462380508

38,0

51,0

38,0

47-51

PCS

0462380604

38,0

49-53

PCS

0462380608

38,0

51,0

38,0

49-53

PCS

0462380804

38,0

52-56

PCS

0462380808

38,0

51,0

38,0

52-56

PCS

0462500604

51,0

62-64

PCS

0462500608

51,0

63,5

51,0

62-64

PCS

0462500804

51,0

63-67

PCS

0462500808

51,0

63,5

51,0

63-67

PCS

0462501004

51,0

68-72

PCS

0462501008

51,0

63,5

51,0

68-72

PCS

0462630604

63,5

74-77

PCS

0462630608

63,5

76,1

63,5

74-77

PCS

0462630804

63,5

77-81

PCS

0462630808

63,5

76,1

63,5

77-81

PCS

0462631004

63,5

84-87

PCS

0462631008

63,5

76,1

63,5

84-87

PCS

0462750604

76,1

87-90

PCS

0462750804

76,1

89-94

PCS

0462751004

76,1

94-98

PCS

0462751204

76,1

98-101

PCS

0462990804

101,6

114-119

PCS

0462991004

101,6

118-122

PCS

0462991604

101,6

130-134

PCS
