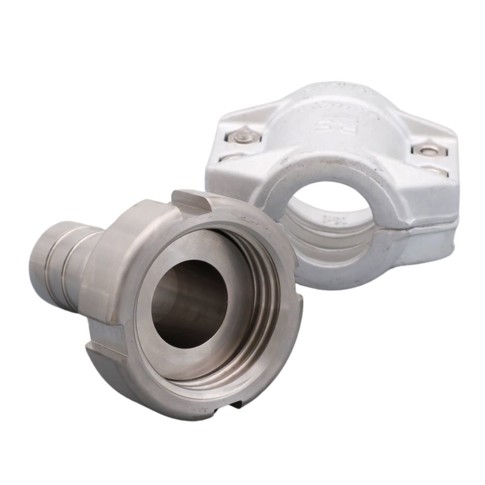

DS union nut

Application:

Clamp fitting with DS connection for product hoses to be connected to equipment. The fitting is fastened with aluminium jaws that provide a relatively low weight.

Construction:

The fitting consists of a connection piece and a set of jaws made of aluminium that are clamped around the hose while the connection piece is locked in a recess.

  • The clamp fitting can be reused in the event of a hose replacement
  • Connections between 25.0 mm and up to 102.0 mm.
  • Supplied with union nut according to DS standard

Quality:

The connection piece is made of stainless steel AISI 316 with a surface roughness inside of R 0.8 µ and provided with batch number. The jaws are made of aluminium.

Download data sheet
Item number Nominal dim.
mm.
Connection DS
nut
Ø ID hose
mm.
Ø OD hose
mm.
Base unit Quantity
0462130501 12,7 25,0 12,7 21-25 PCS
0462200601 19,1 25,0 19,1 29-33 PCS
0462250601 25,0 25,0 25,0 36-39 PCS
0462250605 25,0 38,0 25,0 36-39 PCS
0462250609 25,0 51,0 25,0 36-39 PCS
0462250801 25,0 25,0 25,0 40-43 PCS
0462250805 25,0 38,0 25,0 40-43 PCS
0462250809 25,0 51,0 25,0 40-43 PCS
0462320605 32,0 38,0 32,0 42-46 PCS
0462320805 32,0 38,0 32,0 46-50 PCS
0462380501 38,0 38,0 38,0 47-51 PCS
0462380505 38,0 51,0 38,0 47-51 PCS
0462380601 38,0 38,0 38,0 49-53 PCS
0462380605 38,0 51,0 38,0 49-53 PCS
0462380801 38,0 38,0 38,0 52-56 PCS
0462380805 38,0 51,0 38,0 52-56 PCS
0462500601 51,0 51,0 51,0 62-64 PCS
0462500605 51,0 63,5 51,0 62-64 PCS
0462500609 51,0 76,1 51,0 62-64 PCS
0462500801 51,0 51,0 51,0 63-67 PCS
0462500805 51,0 63,5 51,0 63-67 PCS
0462500809 51,0 76,0 51,0 63-67 PCS
0462501001 51,0 51,0 51,0 68-72 PCS
0462501005 51,0 63,5 51,0 68-72 PCS
0462501009 51,0 76,1 51,0 68-72 PCS
0462630601 63,5 63,5 63,5 74-77 PCS
0462630605 63,5 76,1 63,5 74-77 PCS
0462630801 63,5 63,5 63,5 77-81 PCS
0462630805 63,5 76,1 63,5 77-81 PCS
0462631001 63,5 63,5 63,5 84-87 PCS
0462631005 63,5 76,1 63,5 84-87 PCS
0462750601 76,1 76,1 76,1 87-90 PCS
0462750605 76,1 101,6 76,1 87-90 PCS
0462750801 76,1 76,1 76,1 89-94 PCS
0462750805 76,1 101,6 76,1 89-94 PCS
0462751001 76,1 76,1 76,1 94-98 PCS
0462751005 76,1 101,6 76,1 94-98 PCS
0462751201 76,1 76,1 76,1 98-101 PCS
0462751205 76,1 101,6 76,1 98-101 PCS
0462990801 101,6 101,6 101,6 114-119 PCS
0462991001 101,6 101,6 101,6 118-122 PCS
0462991601 101,6 101,6 101,6 130-134 PCS
