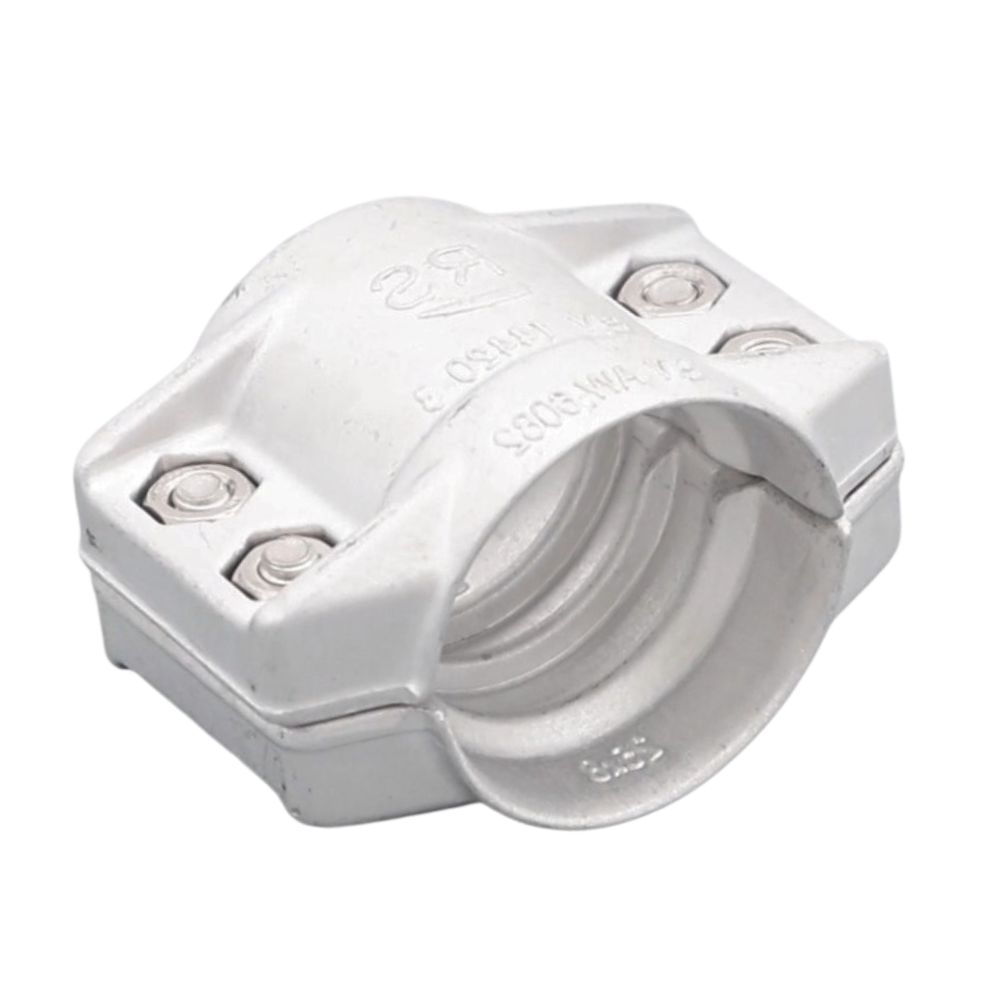

Aluminium clamps

Application:

The 2 jaws are tightened together with 4 bolts for optimal tension. The collar of the jaws is locked in a recess on the connection piece.

Construction:

The jaws are made of aluminium tightened around the hose.

Quality:

Made of aluminium, DIN 2817.

Download data sheet

Item number	Nominal dim. mm.	Ø ID hose mm.	Ø OD hose mm.	Net weight kg.	Base unit
0463911305	13,0	13,0	21-25	0,110	PCS
0463911906	19,0	19,0	29-33	0,130	PCS
0463912505	25,0	25,0	34 - 37	0,140	PCS
0463912506	25,0	25,0	36-39	0,140	PCS
0463912508	25,0	25,0	40-43	0,140	PCS
0463913206	32,0	32,0	42-46	0,150	PCS
0463913208	32,0	32,0	46-50	0,160	PCS
0463913805	38,0	38,0	47-51	0,160	PCS
0463913806	38,0	38,0	50-53	0,160	PCS
0463913808	38,0	38,0	52-56	0,180	PCS
0463915006	50,0	50,0	62-64	0,290	PCS
0463915008	50,0	50,0	63-67	0,270	PCS
0463915010	63,0	50,0	68-72	0,310	PCS
0463916306	63,0	63,0	74-77	0,420	PCS
0463916308	63,0	63,0	77-81	0,450	PCS
0463916510	65,0	65,0	84-87	0,470	PCS
0463917506	75,0	75,0	87-90	0,500	PCS
0463917508	75,0	75,0	89-94	0,510	PCS
0463917510	75,0	75,0	94-98	0,530	PCS
0463917512	75,0	75,0	98-101	0,520	PCS
0463919908	100,0	100,0	114-119	1,190	PCS
0463919910	100,0	100,0	118-122	1,150	PCS
0463919916	100,0	100,0	130-134	1,400	PCS
