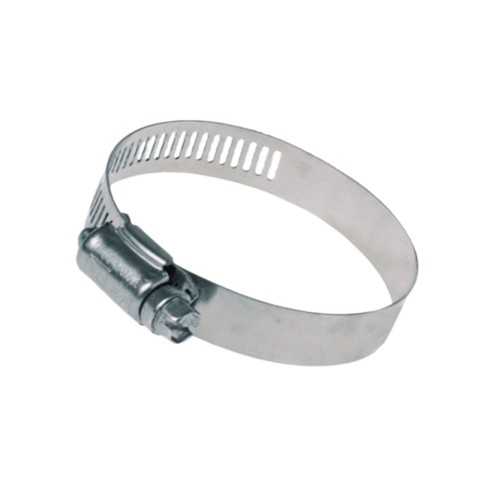

Tridon hose clamp

Application:

Stainless TRIDON (MAH & HAS) hose clamp used for mounting hoses on various hose connections etc.

Quality:

Strip, housing, and screw are all made of stainless steel AISI 304.

Torque:

Recommended 4.5 Nm.

Download data sheet

Item number	Type	Min. dia mm	Max. dia. mm	Band width mm	Base unit
0476000004	MAH 4, 006-016	6,0	16,0	8,0	PCS
0476000006	MAH 6, 008-022	8,0	22,0	8,0	PCS
0476000008	HAS 8, 011-025	11,0	25,0	12,7	PCS
0476000010	HAS 10, 014-027	14,0	27,0	12,7	PCS
0476000012	HAS 12, 014-032	14,0	32,0	12,7	PCS
0476000016	HAS 16, 018-038	18,0	38,0	12,7	PCS
0476000020	HAS 20, 019-044	19,0	44,0	12,7	PCS
0476000024	HAS 24, 027-051	27,0	51,0	12,7	PCS
0476000028	HAS 28, 033-057	33,0	57,0	12,7	PCS
0476000032	HAS 32, 040-064	40,0	64,0	12,7	PCS
0476000036	HAS 36, 046-070	46,0	70,0	12,7	PCS
0476000040	HAS 40, 052-076	52,0	76,0	12,7	PCS
0476000044	HAS 44, 059-083	59,0	83,0	12,7	PCS
0476000048	HAS 48, 065-089	65,0	89,0	12,7	PCS
0476000052	HAS 52, 071-095	71,0	95,0	12,7	PCS
0476000056	HAS 56, 078-102	78,0	102,0	12,7	PCS
0476000064	HAS 64, 064-114	64,0	114,0	12,7	PCS
0476000086	HAS 86, 095-146	95,0	146,0	12,7	PCS
0476000104	HAS 104, 127-178	127,0	178,0	12,7	PCS
0476000128	HAS 128, 165-216	165,0	216,0	12,7	STK.
0476000152	HAS 152	51,0	254,0	12,7	STK.

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
