Camlock female coupling, type D

Application:

Camlock female coupling type D with hose connection. Simple and robust maintenance-free coupling that can be assembled to a tight coupling without the use of tools. The female coupling be used for various liquid and gas lines.

Construction:

Smooth with full passage, allows maximum flow of liquids and gasses
Internal BSPP threaded connection

Quality:

As standard, the couplings are delivered in stainless steel AISI 316, but other materials can be supplied.

Complies with the requirements from:

US MIL-C-27487
DIN 2828

Gaskets:

As standard the gaskets are delivered in NBR, but other materials such as Viton and EDPM can also be supplied.

Safety factor:

Safety factor: 3 times working pressure.

Download data sheet

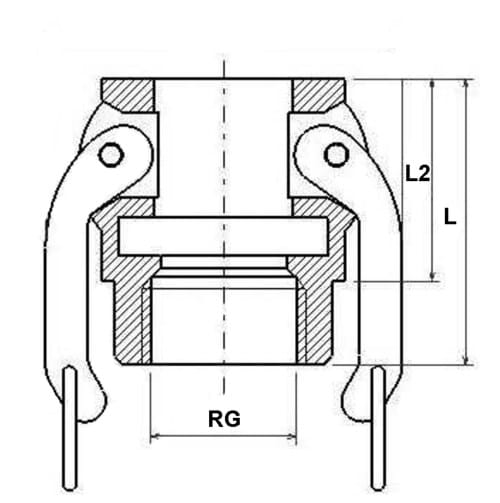

Item number Nom. dim. - DN Connection
RG
Length L
mm.
Installation dim. L2
mm
Working pressure
bar
Base unit Net weight
kg.
Quantity
0472432012 12 1/2" 43,0 29,0 10,0 PCS 0,140
0472432015 20 1/2" 52 32,0 17,0 PCS 0,260
0472432020 20 3/4" 52 32,0 17,0 PCS 0,260
0472432025 25 1" 62 40,0 17,0 PCS 0,350
0472432032 32 1 1/4" 68,0 48,0 17,0 PCS 0,610
0472432040 40 1 1/2" 71,0 49,0 17,0 PCS 0,760
0472432050 50 2" 78,0 54,0 17,0 PCS 0,870
0472432065 65 2 1/2" 85,0 59,0 8,0 PCS 1,230
0472432080 80 3" 90,0 60,0 80 PCS 1,600
0472432090 100 4" 96,0 62,0 6,0 PCS 2,540
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
