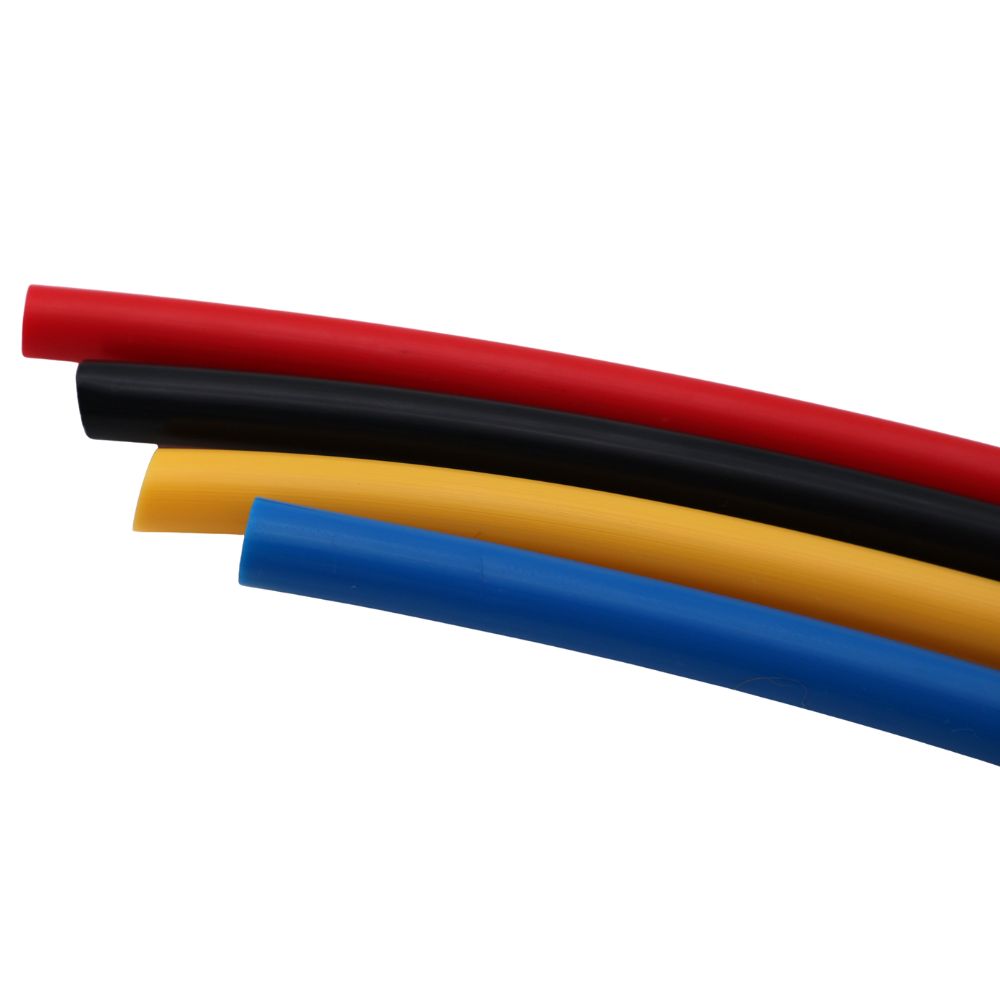

Teflon tube, PTFE, smooth

Application:

Universal Teflon tube suitable for the food and pharmaceutical industry, including laboratories. The tube is specially developed for transporting liquids, where great demands are made on temperature, pressure, or chemical influence.

Can be supplied in different colours on request, such as black, brown, red, green, blue, yellow, orange, grey, purple, and pink. Dimensions up to Ø50 mm.

Properties:

High temperature resistant, meaning PTFE products can be used for continuous operation in a temperature range from -73°C to +260°C. The hose can be used for almost all chemical products except alkaline metals, molten or in solution.

• Low coefficient of friction and self-lubricating
• Non-adhesive and non-flammable
• Excellent electrical properties (frequency and temperature dependent)
• Good mechanical properties with high tensile strength
• Effective at both low and high temperatures
• Durable and resistant to impact
• Fully resistant to ageing and moisture
• Approved for direct food contact
• Weather and UV-resistant

Construction:

The tube is made of extruded virgin PTFE.

Temperature:

The temperature ranges from -73°C to +260°C.

Safety factor:

Safety factor: ≥ 3 times working pressure.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

Approved according to the following European and national regulations, including any amendments and/or updates thereto: DM 21/03/1973, EC 1907/2006, EC 1935/2004, EC 10/2011 (incl. amendment EC 2020/1245), EC 1895/2005, GMP (2023/2006/EC), ROHS (2011/65/EU). Also complies with the following national legislation: FDA cfr 21 item 177.1550 test report § (a) (2) and (b).
