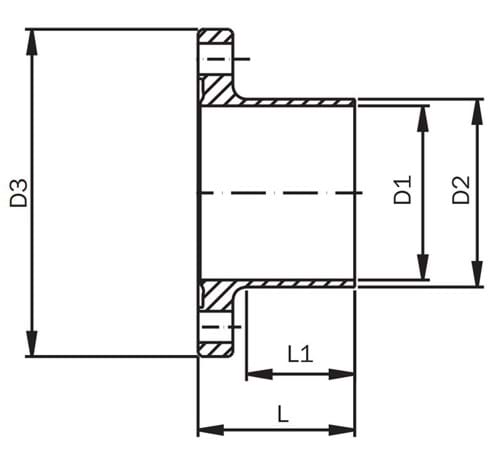

Flange liner, DIN 11864-2, series A

Aseptic flange liner according to the DIN standard 11864-2, series A.

Made of stainless steel AISI 316L.

Download data sheet
Item number Nominal dim.
mm.
D1 dia.
mm.
D2 dia.
mm.
Dia. mm.
D3
Length L
mm.
Installation dim. L1
mm.
Bolt parts
dia. mm. LK
Net weight
kg.
Base unit Quantity
0102240010A 10 10,0 13,0 54,0 40,0 26,0 37 - 4 x 9,0 0,160 PCS
0102240015A 15 16,0 19,0 59,0 40,0 26,0 42 - 4 x ø 9,0 0,19 PCS
0102240020A 20 20,0 23,0 64,0 41,5 26,0 47,0 - 4 X ø9,0 0,23 PCS
0102240025A 25 26,0 29,0 70,0 40,0 26,0 53 - 4 x ø 9,0 0,260 PCS
0102240032A 32 32,0 35,0 76,0 45,0 31,0 59,0 - 4 x ø9,0 0,30 PCS
0102240040A 40 38,0 41,0 82,0 45,0 31,0 65 - 4 x ø 9,0 0,340 PCS
0102240050A 50 50,0 53,0 94,0 45,0 31,0 77 - 4 x ø 9,0 0,420 PCS
0102240065A 65 66,0 70,0 113,0 54,0 42,0 95 - 8 x ø 9,0 0,600 PCS
0102240080A 80 81,0 85,0 133,0 58,0 42,0 112 - 8 x ø 11,0 0,910 PCS
0102240100A 100 100,0 104,0 159,0 58,0 42,0 137 - 8 x ø 11,0 1,420 PCS
0102240125A 125 125,0 129,0 183,0 60,0 42,0 161 - 8 x ø 11,0 1,710 PCS
0102240150A 150 150,0 154,0 213,0 60,0 42,0 188 - 8 x ø 14,0 2,380 PCS
