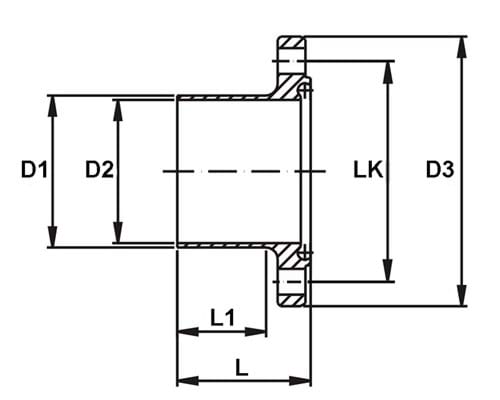

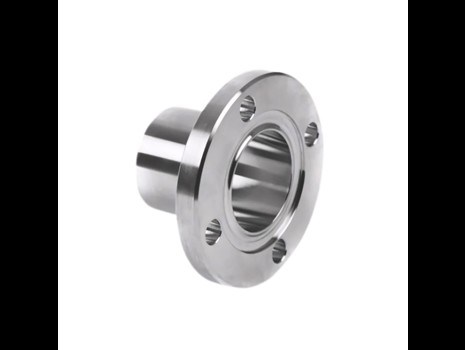

Flange nut, DIN, 11864-2, series A

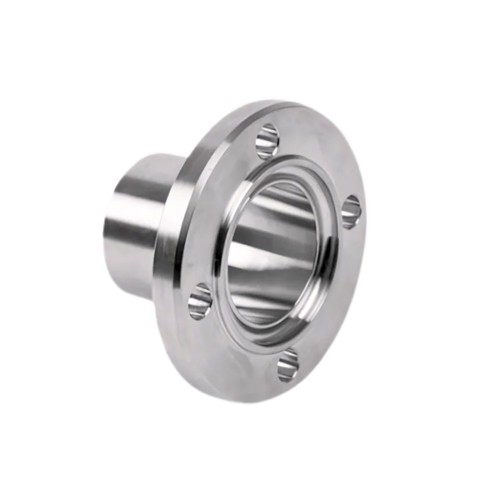

Aseptic flange nut according to the standard DIN 11864-2, series A.

Made of stainless steel AISI 316L.

Download data sheet
Item number Nominal dim.
mm.
D1 dia.
mm.
D2 dia.
mm.
Dia. mm.
D3
Length L
mm.
Installation dim. L1
mm.
Bolt parts
dia. mm. LK
Net weight
kg.
Base unit Quantity
0102250010A 10 10,0 13,0 54,0 41,5 26,0 37,0 - 4 x ø9,0 0,16 PCS
0102250015A 15 16,0 19,0 59,0 41,5 26,0 42,0 - 4 x ø9,0 0,20 PCS
0102250020A 20 20,0 23,0 64,0 41,5 26,0 47,0 - 4 x ø 9,0 0,23 SSTK
0102250025A 25 26,0 29,0 70,0 41,5 26,0 53 - 4 x ø 9,0 0,270 PCS
0102250032A 32 32,0 35,0 76,0 46,5 31,0 59,0 - 4 x ø9,0 0,32 PCS
0102250040A 40 38,0 41,0 82,0 46,5 31,0 65 - 4 x ø 9,0 0,360 PCS
0102250050A 50 50,0 53,0 94,0 46,5 31,0 77 - 4 x ø 9,0 0,440 PCS
0102250065A 65 66,0 70,0 113,0 55,5 42,0 95 - 8 x ø 9,0 0,630 PCS
0102250080A 80 81,0 85,0 133,0 59,5 42,0 112 - 8 x ø 11,0 0,940 PCS
0102250100A 100 100,0 104,0 159,0 59,5 42,0 137 - 8 x ø 11,0 1,460 PCS
0102250125A 125 125,0 129,0 183,0 61,5 42,0 161 - 8 x ø 11,0 1,750 PCS
0102250150A 150 150,0 154,0 213,0 61,5 40,0 188 - 8 x 14,0 2,44 PCS
