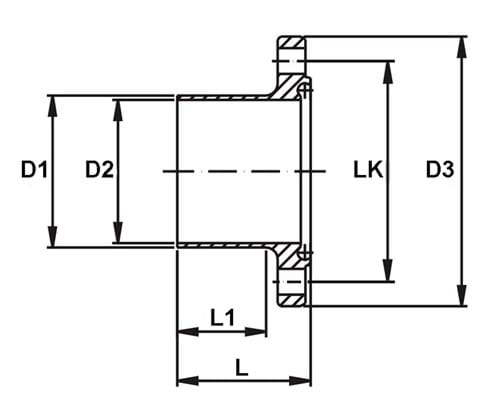

Flange nut, DIN, 11864-2, series C

Aseptic flange nut according to the standard DIN 11864-2, series C.

Made of stainless steel AISI 316L.

Download data sheet
Item number Nominal dim.
mm.
D1 dia.
mm.
D2 dia.
mm.
Dia. mm.
D3
Length L
mm.
Installation dim. L1
mm.
Bolt parts
dia. mm. LK
Net weight
kg.
Base unit Quantity
0102270013C 12,7 9,4 12,7 54,0 41,5 26,0 37,0 - 4 x ø9,0 0,15 PCS
0102270020C 19,1 15,8 19,1 59,0 41,5 26,0 42,0 - 4 x ø9,0 0,21 PCS
0102270025C 25,4 22,1 25,4 66,0 41,5 26,0 49 - 4 x ø 9,0 0,240 PCS
0102270040C 38,1 34,8 38,1 79,0 46,5 31,0 62 - 4 x ø 9,0 0,340 PCS
0102270050C 50,8 47,5 50,8 92,0 46,5 31,0 75 - 4 x ø 9,0 0,440 PCS
0102270065C 63,5 60,2 63,5 107,0 55,5 42,0 89 - 8 x ø 9,0 0,560 PCS
0102270080C 76,2 72,9 76,2 125,0 57,5 42,0 104 - 8 x ø 11,0 0,830 PCS
0102270100C 101,6 97,4 101,6 157,0 59,5 42,0 135 - 8 x ø 11,0 1,450 PCS
