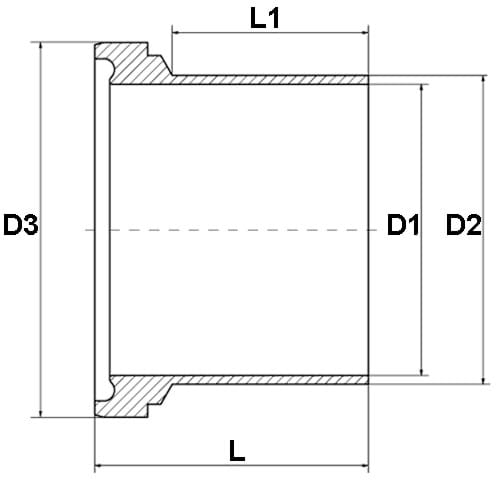

Liner, weld on, DIN, 11864-1, series C

Aseptic liner, weld on following the standard DIN 11864-1, series C.

Made of stainless steel AISI 316L.

Download data sheet
Item number Nominal dim.
mm.		 D1 dia.
mm.		 D2 dia.
mm.		 Dia. mm.
D3		 Length L
mm.		 Installation dim. L1
mm.		 Net weight
kg.		 Base unit Quantity
0102220013C 12,7 9,4 12,7 21,9 39,0 27,0 0,10 PCS
0102220020C 19,1 15,8 19,1 27,9 39,0 27,0 0,11 PCS
0102220025C 25,0 22,1 25,4 42,9 40,0 26,0 0,100 PCS
0102220040C 38,0 34,8 38,1 54,9 46,5 30,0 0,150 PCS
0102220050C 51,0 47,5 50,8 66,9 47,5 30,0 0,210 PCS
0102220065C 63,5 60,2 63,5 84,9 63,0 40,0 0,360 PCS
0102220080C 76,1 72,9 76,2 98,9 61,0 40,0 0,450 PCS
0102220100C 101,6 97,4 101,6 118,9 65,0 40,0 0,620 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
