Nut, DIN, 11864-1, series A/B/C

Aseptic nut following the standard DIN 11864-1, series A/B/C.

Made of stainless steel AISI 304.

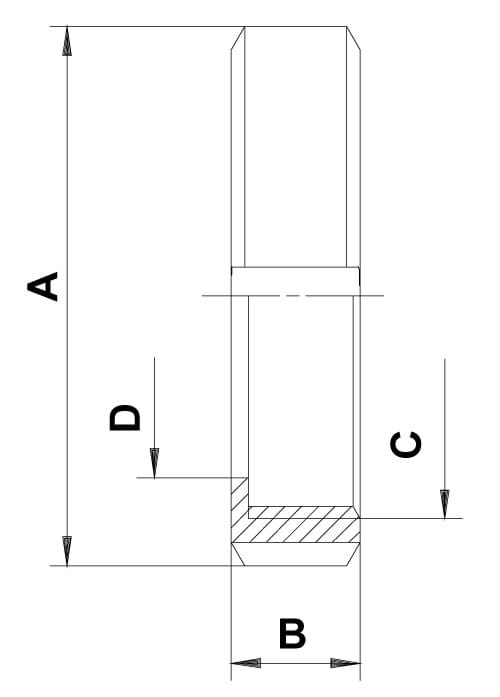

Item number Nominal dim.
mm.		 A dia.
mm		 C dia.
mm.		 D dia.
mm.		 Length B
mm		 Net weight
kg.		 Base unit Quantity
0102100010A 10,0 38,0 28,0 x 1/8" 14,0 18,0 0,070 PCS
0102100015A 15,0 44,0 34,0 x 1/8" 25,0 18,0 0,080 PCS
0102100020A 20,0 54,0 44,0 x 1/6" 31,0 20,0 0,080 PCS
0102100025A 25,0 63,0 52,0 x 1/6" 36,0 21,0 0,130 PCS
0102100032A 32,0 70,0 58,0 x 1/6" 42,0 21,0 0,220 PCS
0102100040A 40,0 78,0 65,0 x 1/6" 49,0 21,0 0,240 PCS
0102100050A 50,0 92,0 78,0 x 1/6" 62,0 22,0 0,320 PCS
0102100065A 65,0 112,0 95,0 x 1/6" 80,0 25,0 0,530 PCS
0102100080A 80,0 127,0 110,0 x 1/4" 94,0 31,0 0,720 PCS
0102100100A 100,0 148,0 130,0 x 1/4" 115,0 31,0 0,970 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
