Weld on (male), DIN, 11864-1, series C

Aseptic weld on (male) following the standard DIN 11864-1, series C.

Made of stainless steel AISI 316L.

Download data sheet

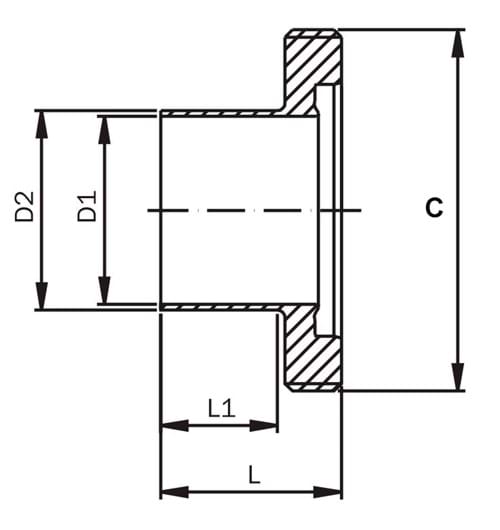

Item number Nominal dim.
mm.		 D1 dia.
mm.		 D2 dia.
mm.		 C dia.
mm.		 Length L
mm.		 Installation dim. L1
mm.		 Net weight
kg.		 Base unit Quantity
0102200013C 12,7 9,4 12,7 28 x 1/8" 41,0 27,0 0,05 PCS
0102200020C 19,1 15,8 19,1 34 x 1/8" 41,0 27,0 0,07 PCS
0102200025C 25,0 22,1 25,4 52,0 x 1/6" 43,0 26,0 0,170 PCS
0102200040C 38,0 34,8 38,1 65,0 x 1/6" 48,5 30,0 0,230 PCS
0102200050C 51,0 47,5 50,8 78,0 x 1/6" 48,5 30,0 0,290 PCS
0102200065C 63,5 60,2 63,5 95,0 x 1/6" 60,0 40,0 0,460 PCS
0102200080C 76,1 72,9 76,2 110,0 x 1/4" 64,0 40,0 0,730 PCS
0102200100C 101,6 97,4 101,6 130,0 x 1/4" 64,0 40,0 0,820 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
