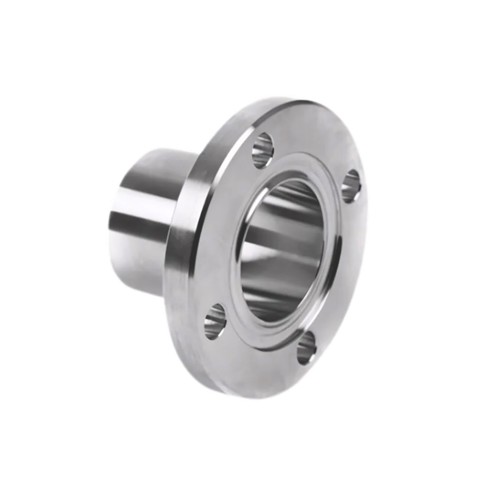

Flange liner, ISO, 11864-2, series B

Made of stainless steel AISI 316.

Aseptic flange liner according to the DIN standard 11864-2, series B.

Download data sheet

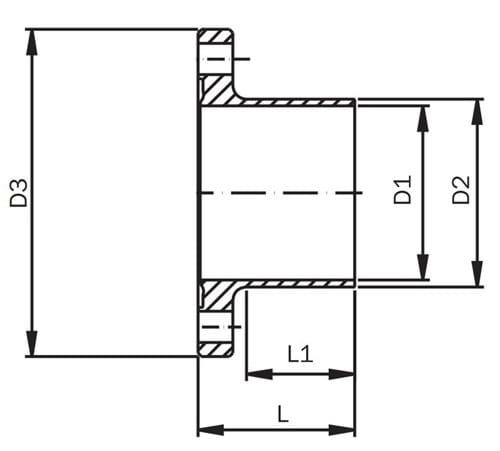

Item number	Nominal dim. mm.	D1 dia. mm.	D2 dia. mm.	Dia. mm. D3	Length L mm.	Installation dim. L1 mm.	C dia. mm.	Bolt parts dia. mm. LK	Net weight kg.	Base unit
0102251013B	13,5	10,3	13,5	54,0	40,0	26,0	0	37,0	0,15	PCS
0102251017B	17,2	14,0	17,2	59,0	40,0	26,0		42,0	0,18	PCS
0102251021B	21,2	18,1	21,3	62,0	40,0	26,0		45,0	0,21	PCS
0102251026B	26,9	23,7	26,9	69,0	40,0	26,0		52,0	0,26	PCS
0102251033B	33,7	29,7	33,7	74,0	46,5	31,0		57,0	0,32	PCS
0102251042B	42,4	38,4	42,4	82,0	46,5	31,0		65,0	0,38	PCS
0102251048B	48,3	44,3	48,3	88,0	46,5	31,0		71,0	0,42	PCS
0102251060B	60,3	56,3	60,3	103,0	55,5	42,0		85,0	0,57	PCS
0102251076B	76,1	72,1	76,1	125,0	56,0	42,0		104,0	0,77	PCS
0102251088B	88,9	84,3	88,9	137,0	59,5	42,0		116,0	1,02	PCS
0102251114B	114,3	109,7	114,3	168,0	58,0	42,0		146,0	1,60	PCS
