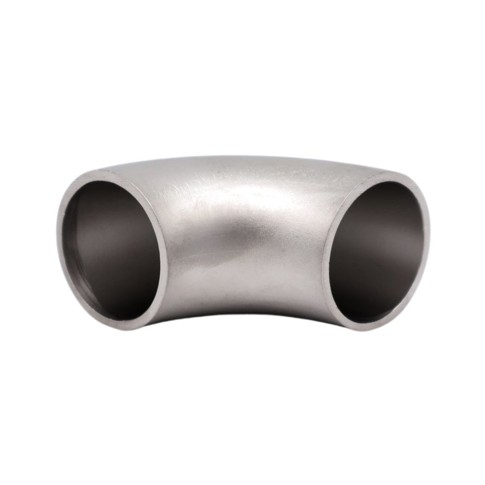

Elbow 90°, ISO tube, weld on

Made of stainless steel AISI 316.

Download data sheet

Item number	Nominal dim. mm.	Installation dim. L mm.	Radius mm	Godstykkelse T - mm.	Net weight kg.	Base unit
0103992017	17,2	27,5	27,5	1,60	0,030	PCS
0103992018	17,2	27,3	27,3	2,3	0,035	PCS
0103992021	21,3	28,0	28,0	2,00	0,040	PCS
0103992022	21,3	28,0	28,0	2,60	0,060	PCS
0103992027	26,9	29,0	29,0	2,00	0,060	PCS
0103992028	26,9	29,0	29,0	2,60	0,080	PCS
0103992033	33,7	38,0	38,0	2,00	0,100	PCS
0103992034	33,7	38,0	38,0	3,20	0,140	PCS
0103992041	42,4	48,0	48,0	2,00	0,160	PCS
0103992042	42,4	48,0	48,0	3,20	0,230	PCS
0103992048	48,3	57,0	57,0	2,00	0,220	PCS
0103992049	48,3	57,0	57,0	3,20	0,320	PCS
0103992060	60,3	76,0	76,0	2,00	0,400	PCS
0103992062	60,3	76,0	76,0	3,60	0,620	PCS
0103992076	76,1	95,0	95,0	2,00	0,620	PCS
0103992077	76,1	95,0	95,0	2,60	0,700	PCS
0103992078	76,1	95,0	95,0	3,60	1,080	PCS
0103992089	88,9	114,0	114,0	2,00	0,810	PCS
0103992090	88,9	114,0	114,0	4,00	1,650	PCS
0103992114	114,3	152,0	152,0	2,00	1,300	PCS
0103992115	114,3	152,0	152,0	3,00	2,000	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
