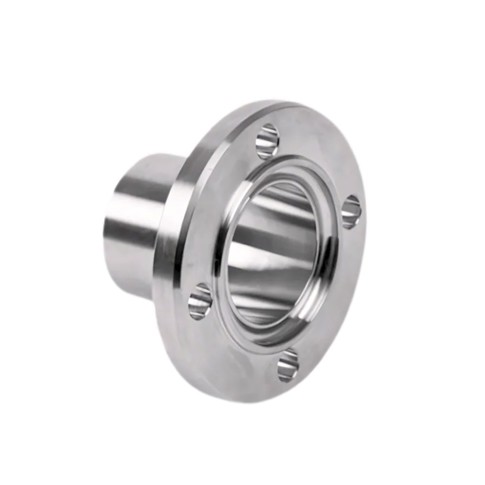

Flange nut, ISO, 11864-2, series B

Made of stainless steel AISI 316.

Aseptic flange nut according to the standard DIN 11864-2, series B.

Download data sheet

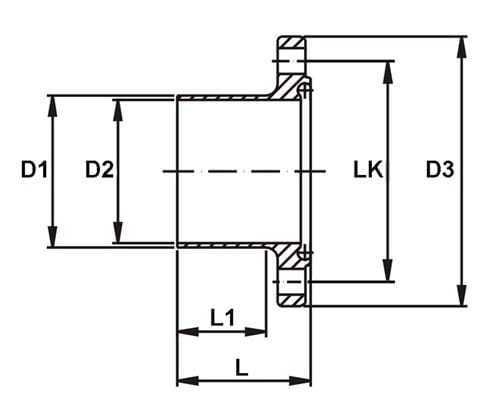

Item number	Nominal dim. mm.	D1 dia. mm.	D2 dia. mm.	Dia. mm. D3	Length L mm.	Installation dim. L1 mm.	Bolt parts dia. mm. LK	Net weight kg.	Base unit
0102252013B	13,5	10,3	13,5	54,0	41,5	26,0	37,0	0,17	PCS
0102252017B	17,2	14,0	17,2	59,0	41,5	26,0	42,0	0,21	PCS
0102252021B	21,3	18,1	21,3	62,0	41,5	26,0	45,0	0,22	PCS
0102252026B	26,9	23,7	26,9	69,0	41,5	26,0	52,0	0,27	PCS
0102252033B	33,7	29,7	33,7	74,0	46,5	31,0	57,0	0,32	PCS
0102252042B	42,4	38,4	42,4	82,0	46,5	31,0	65,0	0,38	PCS
0102252048B	48,3	44,3	48,3	88,0	46,5	31,0	71,0	0,42	PCS
0102252060B	60,3	56,3	60,3	103,0	55,5	42,0	85,0	0,57	PCS
0102252076B	76,1	72,1	76,1	125,0	57,5	42,0	104,0	0,89	PCS
0102252088B	88,9	84,3	88,9	137,0	59,5	42,0	116,0	1,02	PCS
0102252114B	114,3	109,7	114,3	168,0	59,5	42,0	146,0	1,64	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
