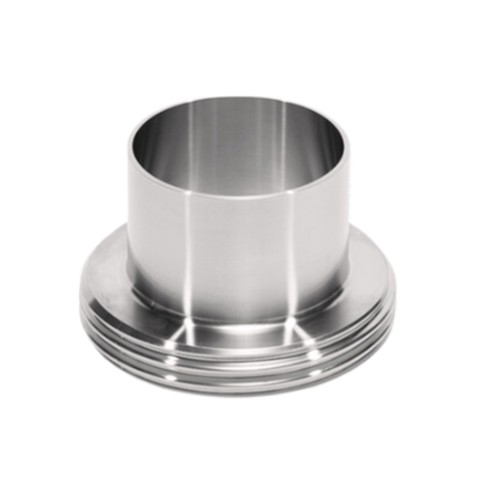

Weld on (male), DIN, 11864- 1, series A

Aseptic weld on (male) following the standard DIN 11864-1, series A.

Made of stainless steel AISI 316L.

Download data sheet

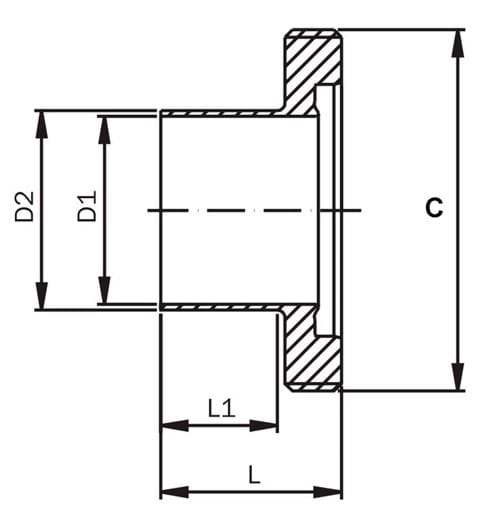

Item number Nominal dim.
mm.
D1 dia.
mm.
D2 dia.
mm.
C dia.
mm.
Length L
mm.
Installation dim. L1
mm.
Net weight
kg.
Base unit Quantity
0102120010A 10 10,0 13,0 28,0 x 1/8" 41,0 27,0 0,050 PCS
0102120015A 15 16,0 19,0 34,0 x 1/8" 41,0 27,0 0,070 PCS
0102120020A 20 20,0 23,0 44,0 x 1/6" 43,0 26,0 0,130 PCS
0102120025A 25 26,0 29,0 52,0 x 1/6" 43,0 26,0 0,160 PCS
0102120032A 32 32,0 35,0 58,0 x 1/6" 48,0 32,0 0,180 PCS
0102120040A 40 38,0 41,0 65,0 x 1/6" 48,0 31,0 0,220 PCS
0102120050A 50 50,0 53,0 78,0 x 1/6" 48,0 30,0 0,280 PCS
0102120065A 65 66,0 70,0 95,0 x 1/6" 60,0 40,0 0,450 PCS
0102120080A 80 81,0 85,0 110,0 x 1/4" 64,0 40,0 0,690 PCS
0102120100A 100 100,0 104,0 130,0 x 1/4" 64,0 40,0 0,800 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
