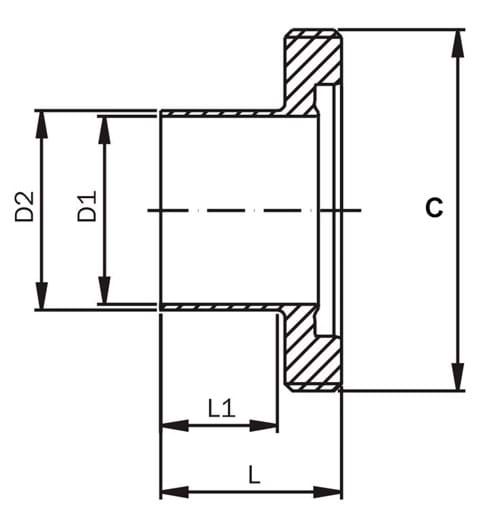

Weld on (male), DIN, 11864-1, series B

Made of stainless steel AISI 316L.

Aseptic weld on (male) following the standard DIN 11864-1, series B.

Download data sheet
Item number Nominal dim.
mm.
D1 dia.
mm.
D2 dia.
mm.
Length L
mm.
Installation dim. L1
mm.
C dia.
mm.
Net weight
kg.
Base unit Quantity
0102160013B 13,5 10,3 13,5 41,0 27,0 28 x 1/8" 0,05 PCS
0102160017B 17,2 14,0 17,2 41,0 27,0 34 x 1/8" 0,07 PCS
0102160021B 21,3 18,1 21,3 43,0 27,0 44 x 1/6" 0,13 PCS
0102160026B 26,9 23,7 26,9 43,0 27,0 52 x 1/6" 0,16 PCS
0102160033B 33,7 29,7 33,7 48,0 32,0 58 x 1/6" 0,20 PCS
0102160042B 42,4 38,4 42,4 48,0 32,0 65 x 1/6" 0,23 PCS
0102160048B 48,3 44,3 48,3 49,0 31,0 78 x 1/6" 0,32 PCS
0102160060B 60,3 56,3 60,3 60,0 40,0 95 x 1/6" 0,49 PCS
0102160076B 76,1 72,1 76,1 64,0 40,0 110 x 1/4" 0,80 PCS
0102160088B 88,9 84,3 88,9 64,0 40,0 130 x 1/4" 0,97 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
