Gasket for In-Line sight glass

Application:

Gasket for use with In-Line sight glass.

Temperature:

Temperature covers from -40°C to +150°C.

Quality:

The gasket is manufactured in EPDM.

Download data sheet

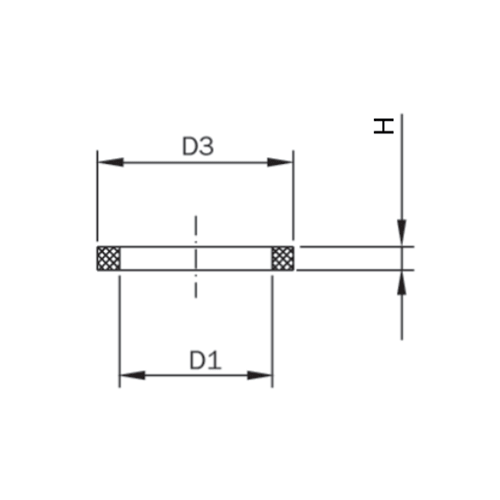

Item number Nominal dim.
inch		 Nom. dim. - DN D1 dia.
mm.		 Dia. mm.
D3		 Height H
mm.		 Elastomer
type		 Base unit Quantity
0133170100 10 10,0 16,0 3,0 EPDM PCS
0133170150 15 16,0 23,0 3,0 EPDM PCS
0133170200 20 20,0 27,0 3,0 EPDM PCS
0133170250 1" 25 26,0 33,0 3,0 EPDM PCS
0133170320 32 32,0 39,0 3,0 EPDM PCS
0133170380 1½" 40 38,0 51,0 3,0 EPDM PCS
0133170510 2" 50 50,0 61,0 3,0 EPDM PCS
0133170640 2½" 61,0 72,0 3,0 EPDM PCS
0133170650 65 66,0 76,0 3,0 EPDM PCS
0133170760 3" 76,0 87,0 4,0 EPDM PCS
0133170800 80 81,0 91,0 4,0 EPDM PCS
0133171000 4" 100 100,0 110,0 4,0 EPDM PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
